Blue Sea 1522 360 Panel Dual Bilge Pump Control

BLUE SEA 1522 360 PANEL DUAL BILGE PUMP CONTROL

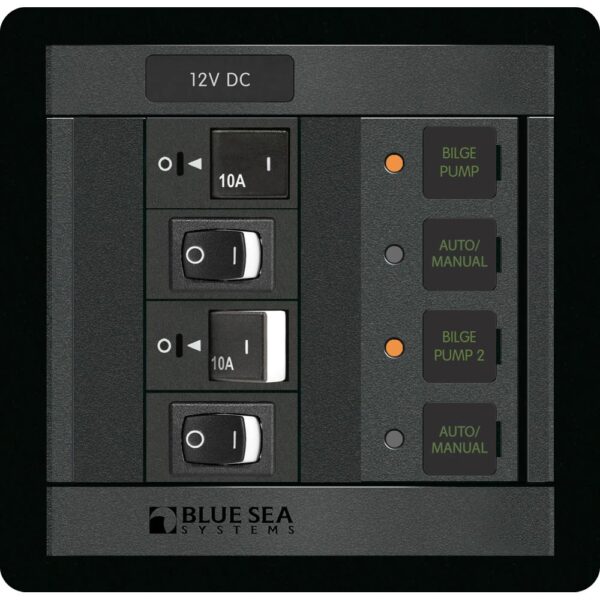

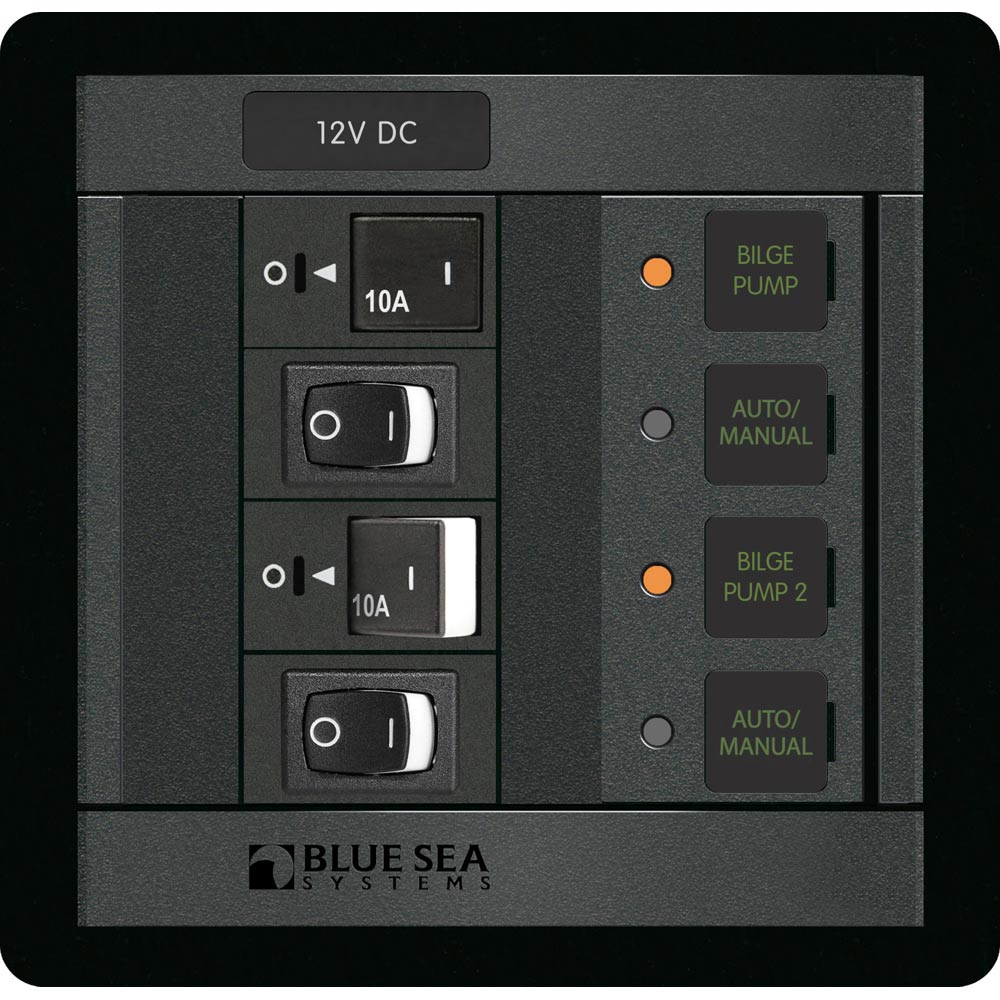

360 Panel Dual Bilge Pump Control

Controls two bilge pumps
Restricted-off circuit breakers and manual override switches

• On-indicating LED indicates power is available at the bilge pump float switch

• Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch

• Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation

Specifications:

• Nominal Voltage: 12V DC

• Height: 4.75″ (120.65mm)

• Width: 4.88″ (123.95mm)

Includes:
(2) – 7427 – A-Series Restricted Off Flat Rocker Circuit Breaker – Single Pole 10A
(2) – 7480 – Rocker Switch SPST – ON-OFF

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
