Blue Sea 4305 WeatherDeck® 12V DC Waterproof Switch Panel – 4 Posistion

BLUE SEA 4305 WEATHERDECK PANEL 4 POSITION NO CIRCUIT

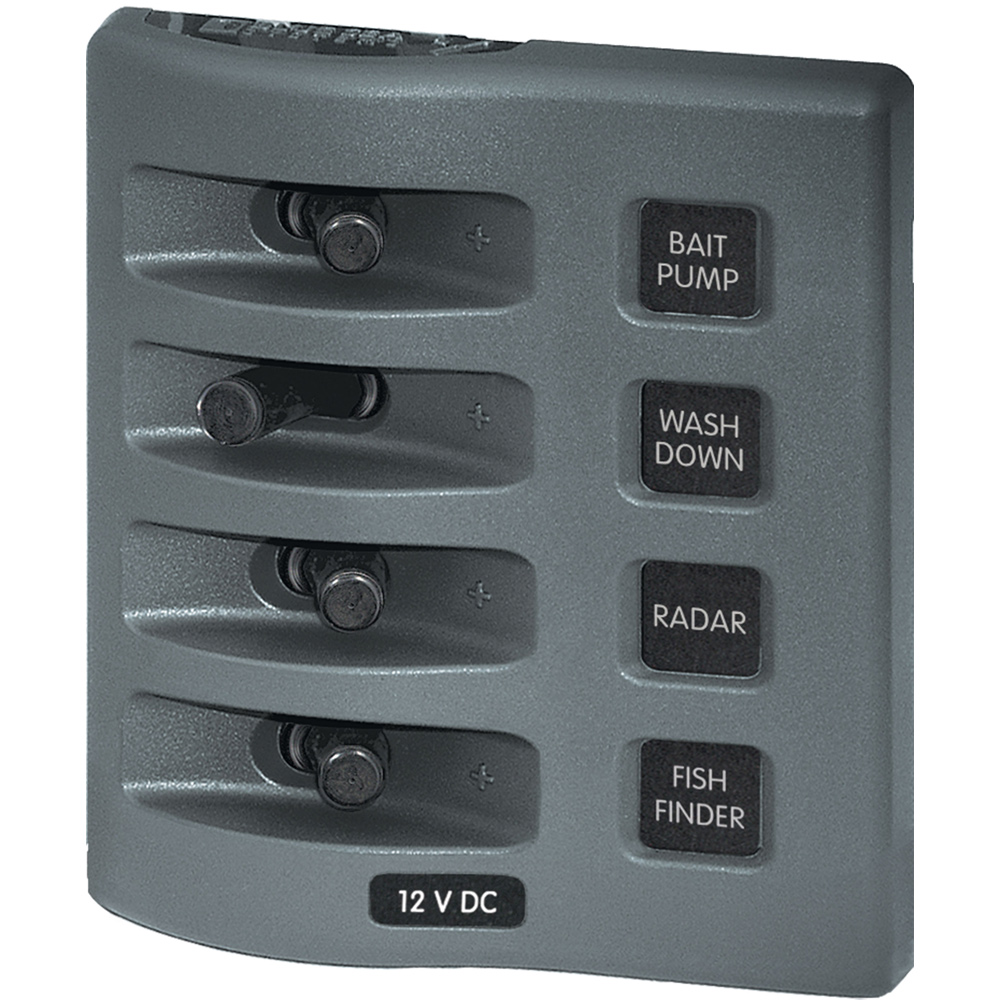

WeatherDeck® 12V DC Waterproof Switch Panel – 4 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30″(109.22 mm)
Width : 3.88″(98.55 mm)
Depth: 2.50″(63.5 mm)
Weight: 0.90lb (0.41 kg)
