Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel – 8 Position

BLUE SEA 4309 WEATHERDECK PANEL 8 POSITION NO CIRCUIT

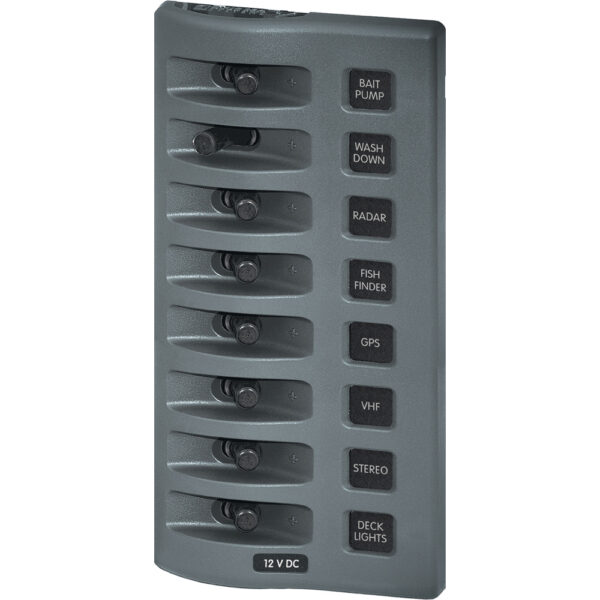

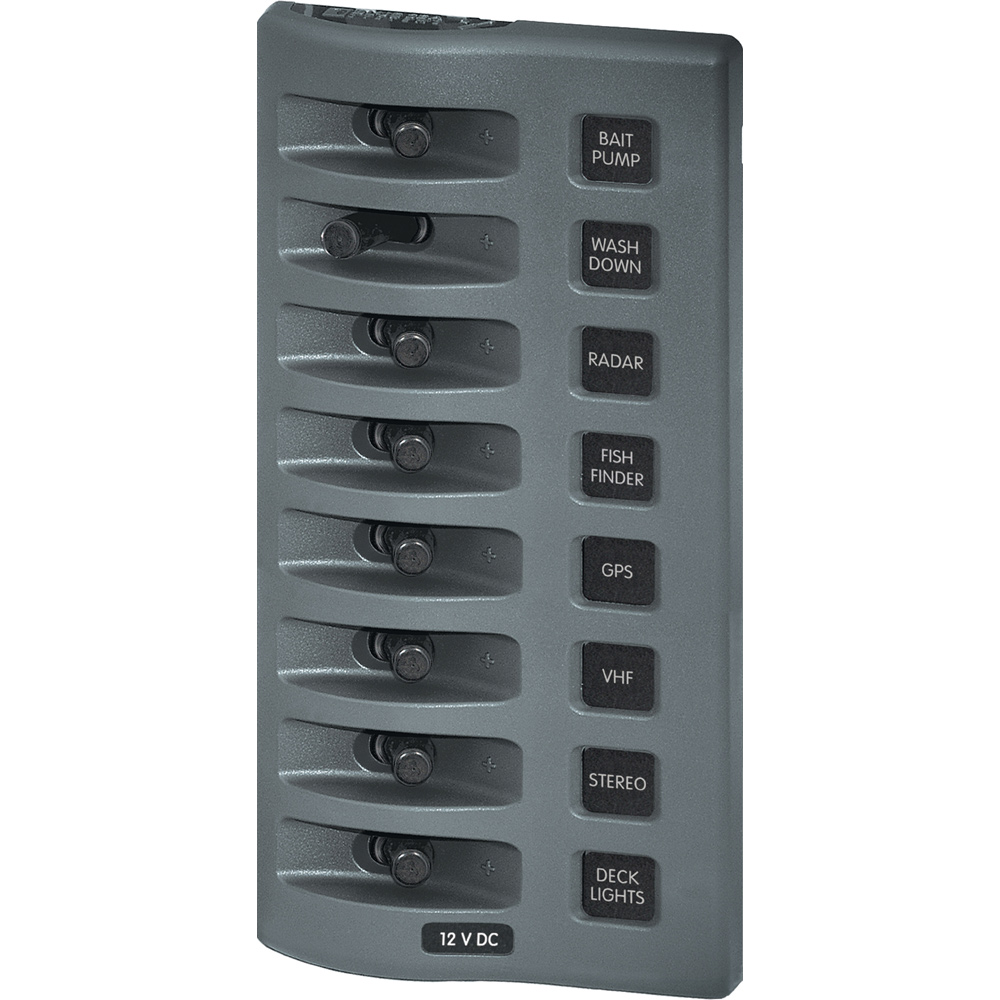

WeatherDeck® 12V DC Waterproof Switch Panel – 8 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

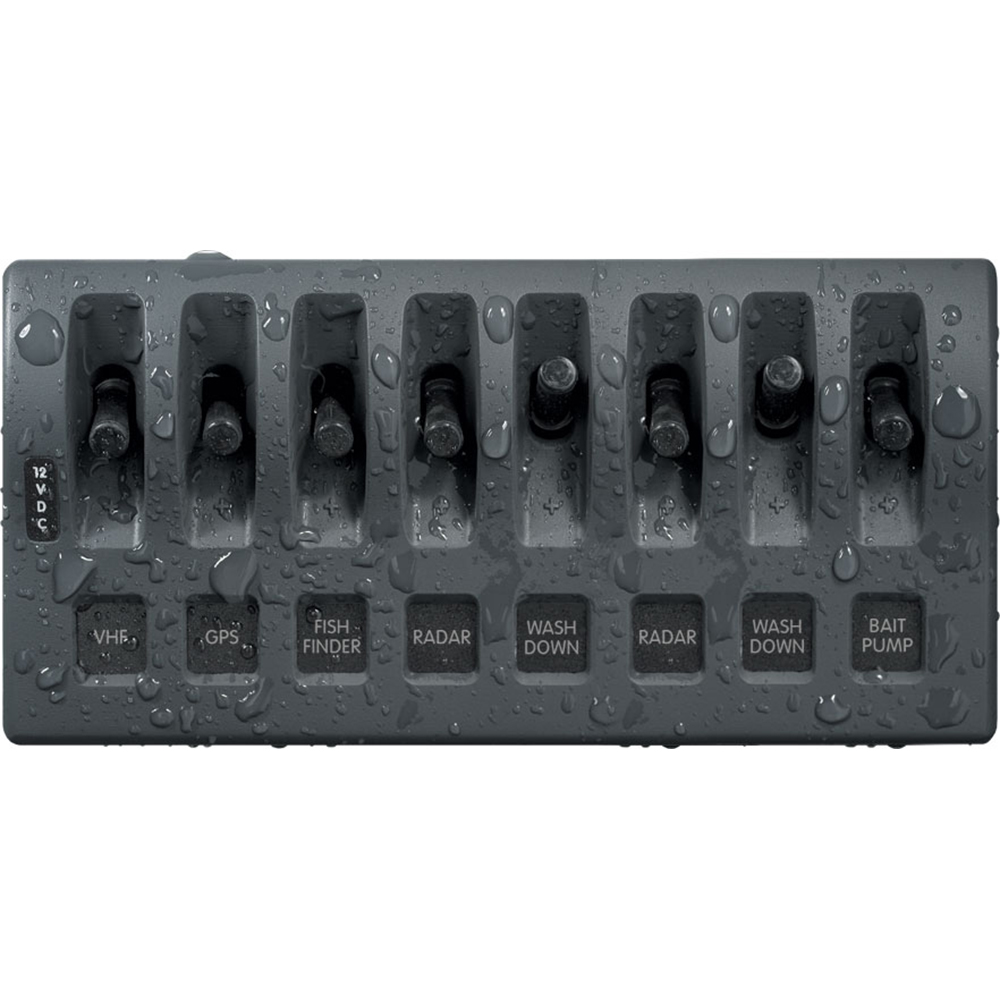

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70″(195.58 mm)
Width : 3.88″(98.55 mm)
Depth: 2.50″(63.5 mm)
Weight: 1.55lb (0.7 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
