Description

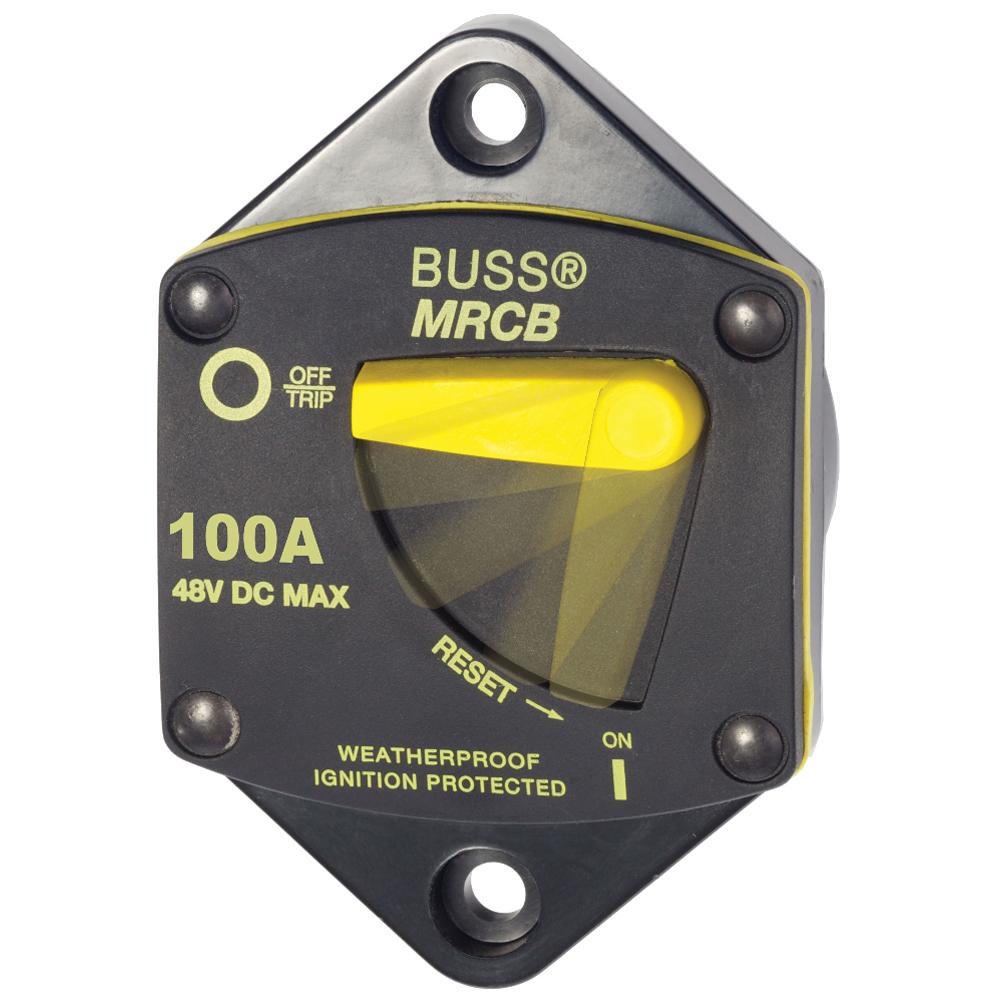

BLUE SEA 7044 CIRCUIT BREAKER 100A
187 – Series Thermal Circuit Breakers – Panel Mount
100 Amp Circuit Breaker
PN: 7044
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Self-trimming case eliminates the need for mounting panels or trim bezels
- Round case permits easy installation with standard sized hole saw
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected – safe for installation aboard gasoline powered boats
| Specifications | |
| Circuit Breaker Class: | Type III – Switchable / Manual Reset – Trip Free |
| Type: | Thermally Responsive Bi-Metal Blade |
| Case Material: | Thermoset Polyester |
| Voltage Rating: | 48 Volts DC Maximum |
| Interrupt Rating: | 5,000 Amperes @12 Volts DC |
| 3,000 Amperes @24 Volts DC | |
| 1,500 Amperes @42 Volts DC | |
| Operating Temperature Range: | -25C° to +82C° |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7044 |
| Model | 7044 |
| UPC | 632085170448 |
| Country | MEXICO |
| Type | Blue Sea Systems |
