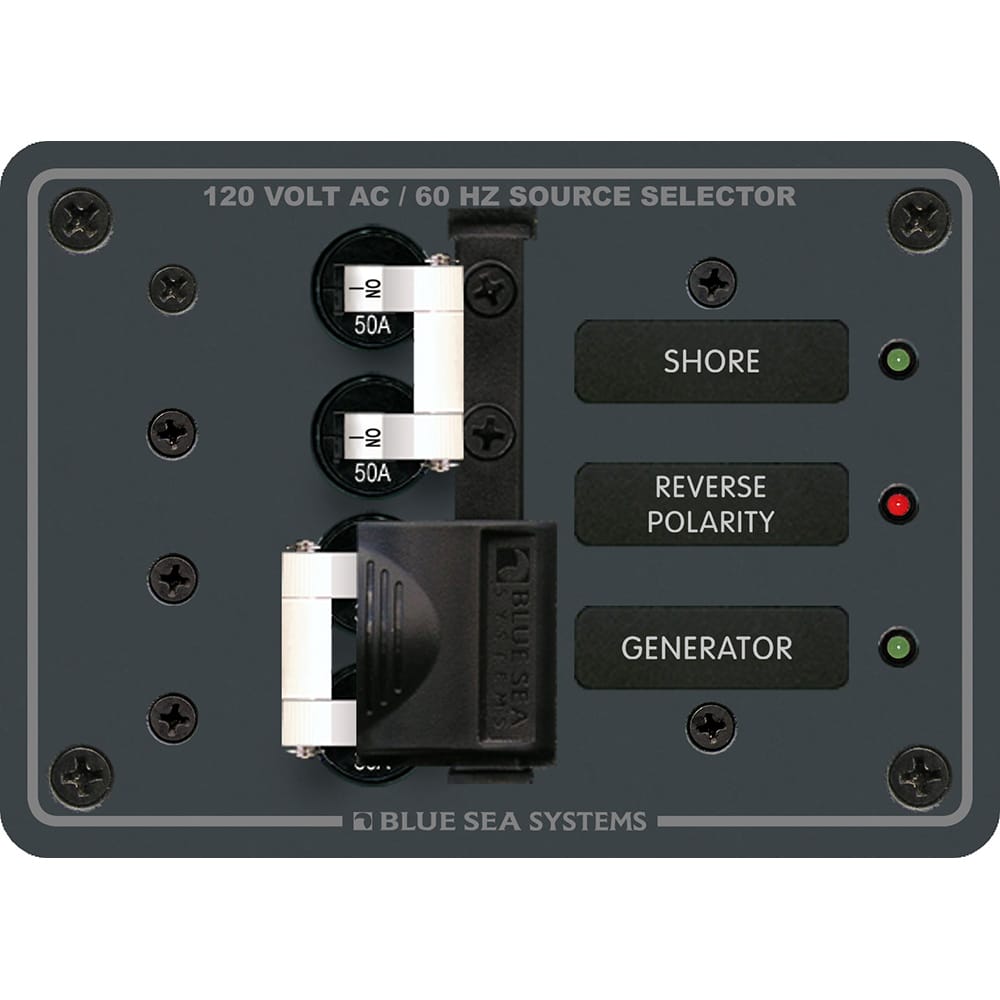

Blue Sea 8061 AC Toggle Source Selector 120V AC – 50AMP

BLUE SEA 8061 PANEL 120VAC SOURCE SELECT

8061 AC Toggle Source Selector 120V AC – 50AMP

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Source Selection: 2
• Nominal Voltage: 120v AC
• Height: 3.75″
• Width: 5.25″
• Weight: 1.84 lbs

Included:

• (2) 7242 A-Series White Toggle Circuit Breaker – Double Pole 50A
• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (1) 8034 LED – 120v AC Green
• (1) 8066 LED – 120v AC Red
