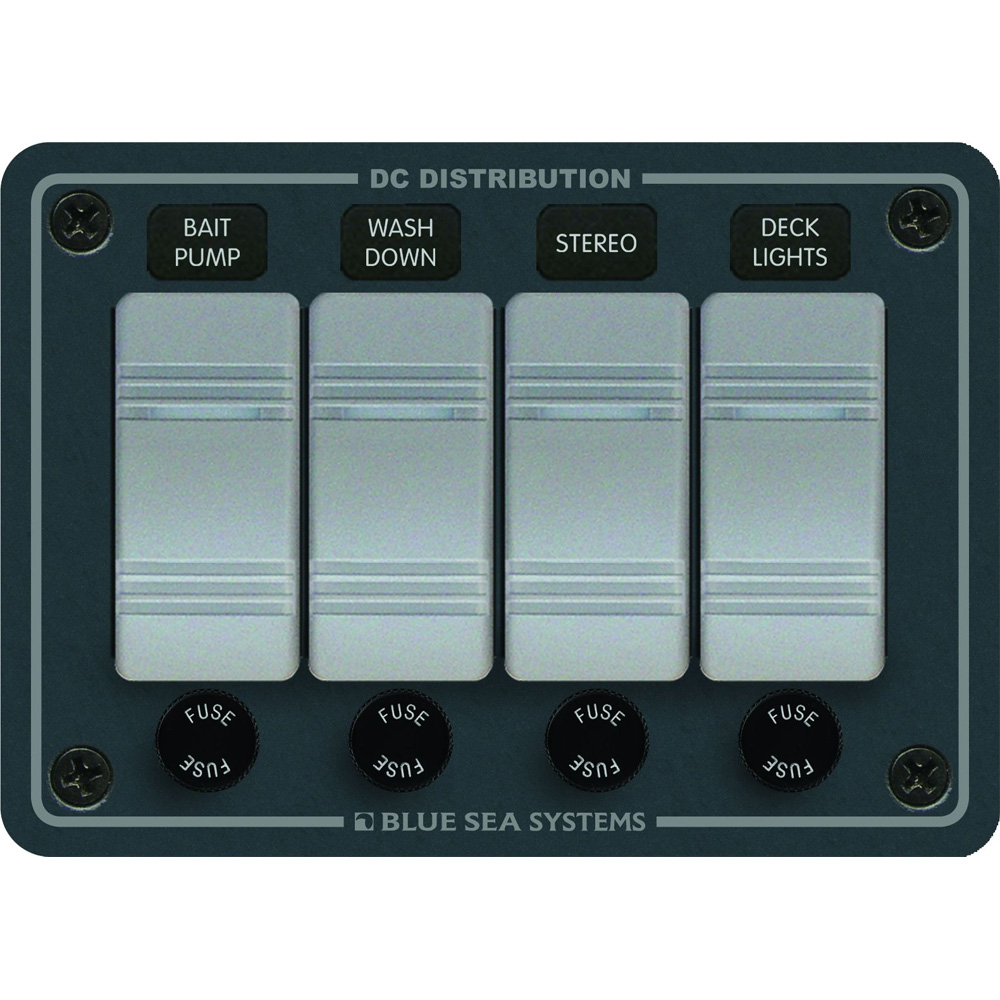

Blue Sea 8262 Waterproof Panel 4 Position – Slate Grey

BLUE SEA 8262 PANEL WATERPROOF 12VDC

8262 Waterproof Panel 4 Position – Slate Grey

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 4
• Nominal Voltage: 12v / 24v
• Panel Cumulative Rating: 45A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 3.75″
• Width: 5.25″
• Depth: 3″

Included:

• (4) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8214 Black 60 Label Set
• (4) 8230 Contura Switch SPST Gray – Off-On
