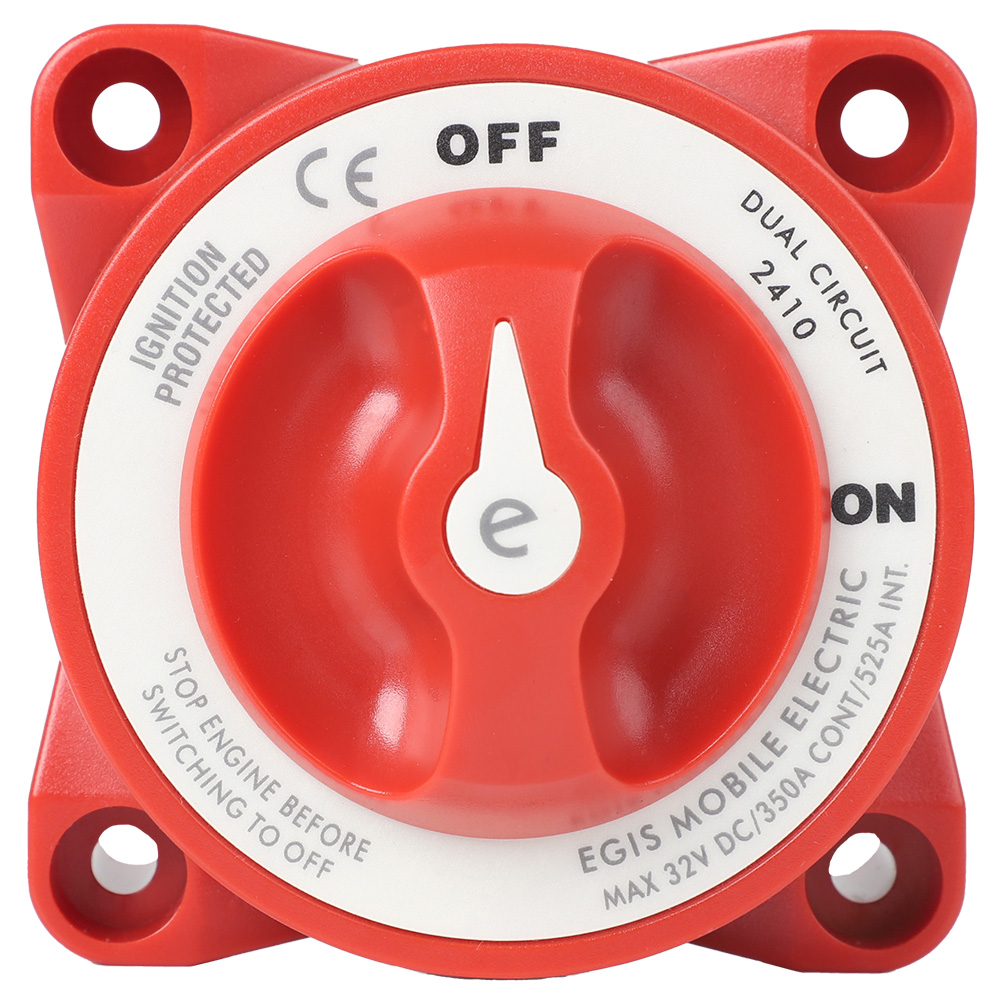

Egis E-Series 350A Dual Circuit Battery Switch Off/On

EGIS E-SERIES 350A DUAL CIRCUIT BATTERY SWITCH OFF/ON

E-Series 350A Dual Circuit Battery Switch Off/On

Sealed Against Dust & Water Intrusion – To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected – Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts – Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options – Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design – With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #1/4″ (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel – Mounting Hole Size: 3-5/8″ Diameter
• Cable Size to Meet Rating: 4/0 AWG
