Description

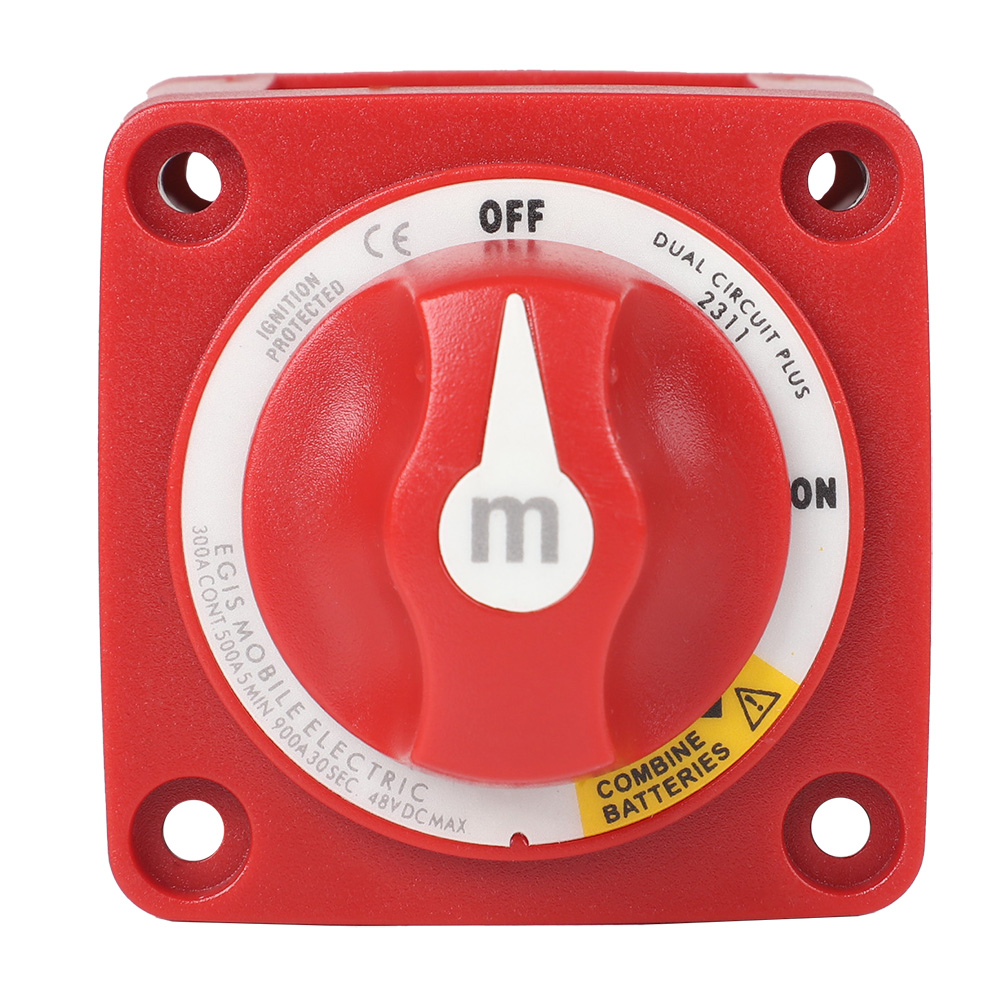

EGIS M-SERIES 300A DUAL CIRCUIT W/COMBINE BATTERY
M-Series 300A Dual Circuit Battery Switch with Combine Battery Switch
Sealed Against Dust & Water Intrusion – To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected – Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts – Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options – Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design – With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel – Mounting Hole Size: 2-5/8″ / 2-5/16″
- Cable Size to Meet Rating: 4/0 AWG
You have questions please contact us
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
| Brand | Egis Mobile Electric |
| Manufacturer Part Number | 2311 |
| Model | 2311 |
| UPC | 850067590538 |
| Type | Egis Mobile Electric |
