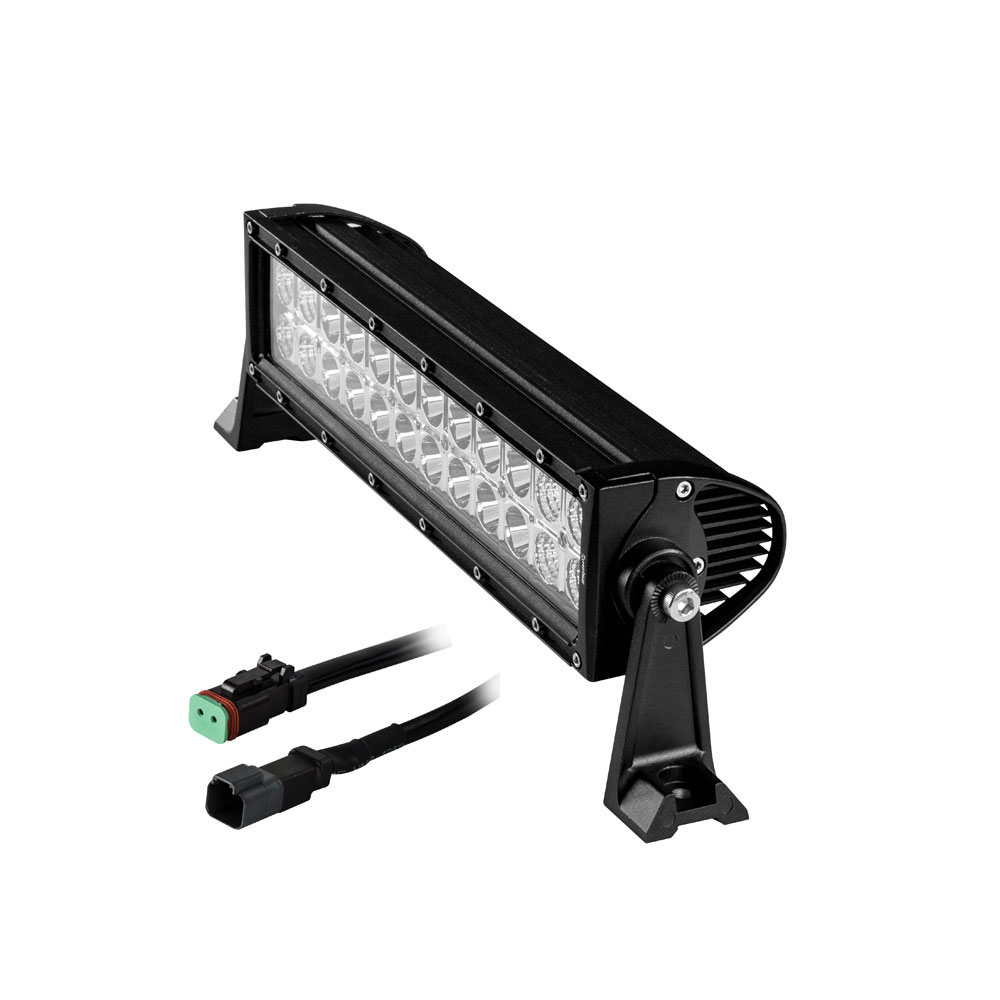

HEISE Dual Row LED Light Bar – 14″

HEISE 14″ DUAL ROW LED LIGHT BAR – BLACK CASE

Dual Row LED Light Bar – 14″

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 72W
• (24-3W CREE LEDs)
• Raw Lumens: 5760
• LUX @ 10M: 466
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 14″
• Hole Dimensions:

• Brackets turned inward – 13.50″
• Brackets turned outward – 14.75″
• Mounting Bolt Drill – .25″

• Height of Light Bar Itself: 3″
• Depth of Light Bar Itself: 3.50″
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 3.7 amps @ 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity
