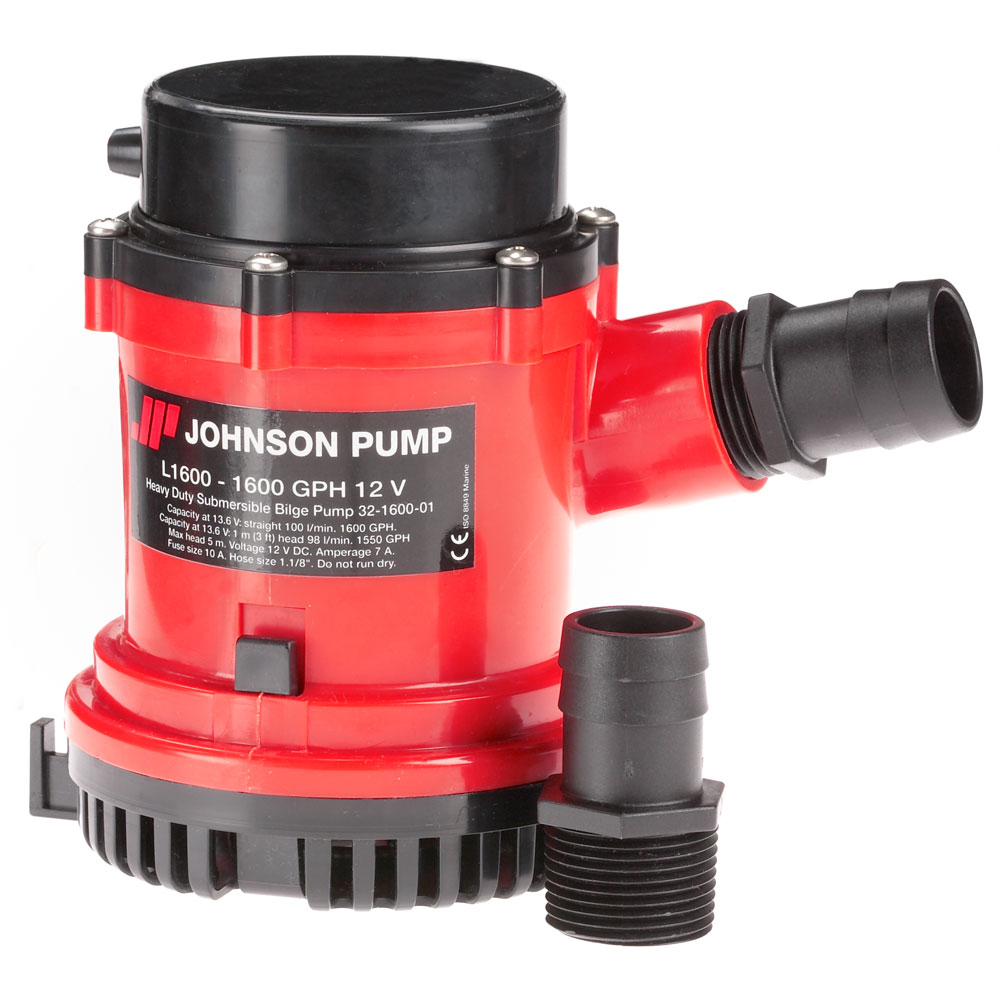

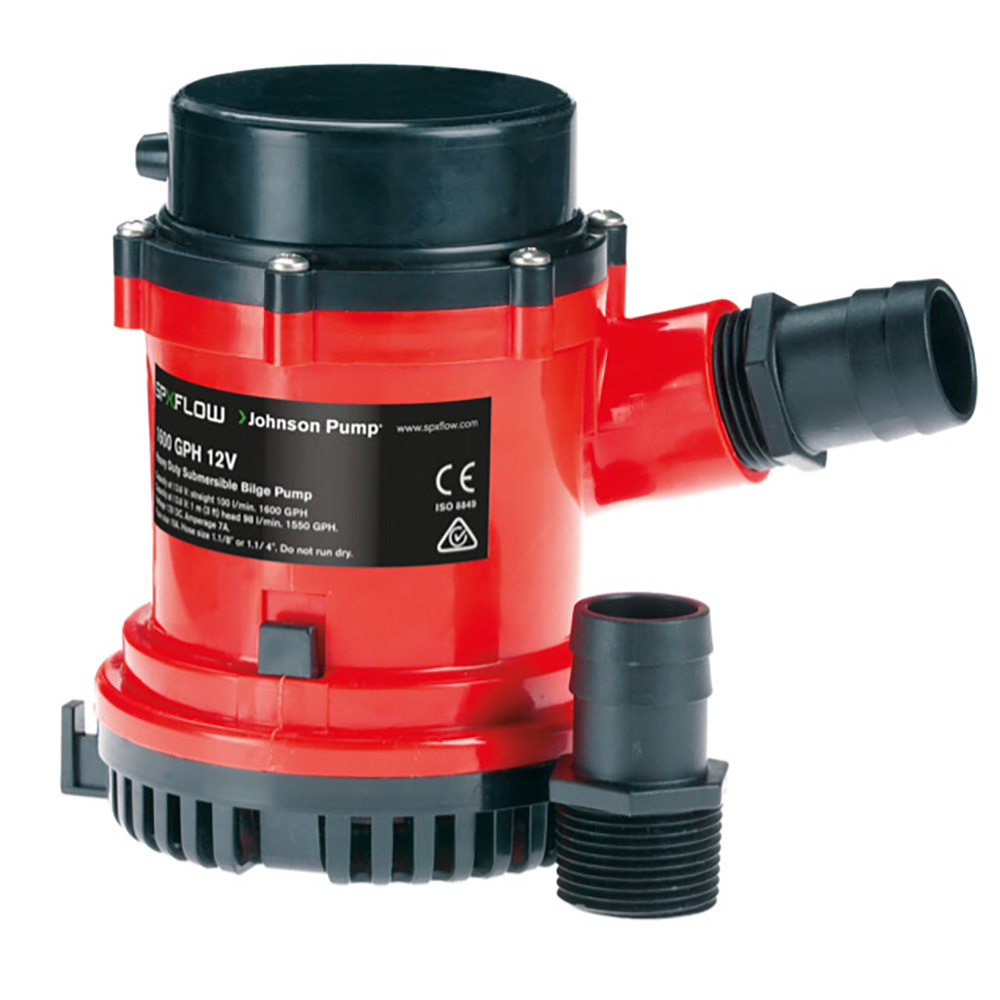

Johnson Pump 1600 GPH Bilge Pump 1-1/8″ Hose 12V

JOHNSON PUMP 1600 GPH BILGE PUMP 1-1/8″ HOSE 12V

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2″ or 2″ ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 98 l/min – 1550 GPH

• Capacity straight (13.6 V/27 V): 100 l/min – 1600 GPH

• Amperage: 7 A

• Fuse Size: 10 A

• Connection: 1-1/8″ and 1-1/4″

• Shaft: SS2343

• Wire size: 1.3 mm2 – 16 GA

• Max height 149 mm – 5.86″

• Weight 1.3 kg – 2.75 lbs
