Lenco 101XD Extreme Duty Actuator – 24V – 2-1/4″ Stroke – 5/16″ Hardware

LENCO 24V 2 1/4″ STROKE EXTREME DUTY ACTUATOR W/ 6′

101 XD Actuator- 24 Volt- 2-1/4  Stroke with Mounting Hardware

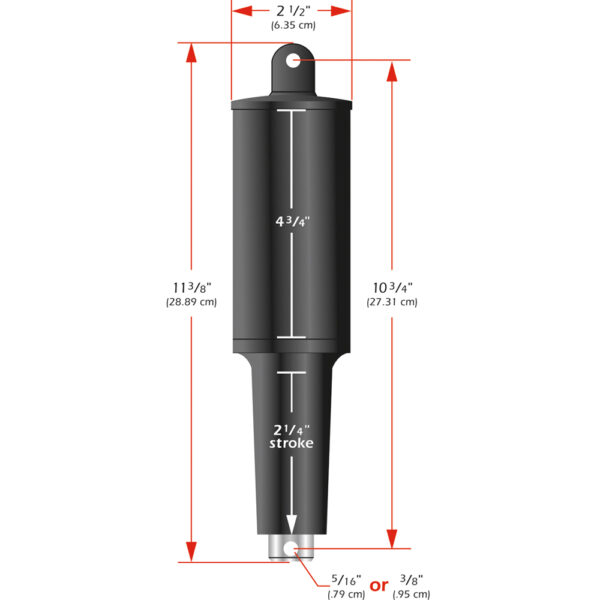

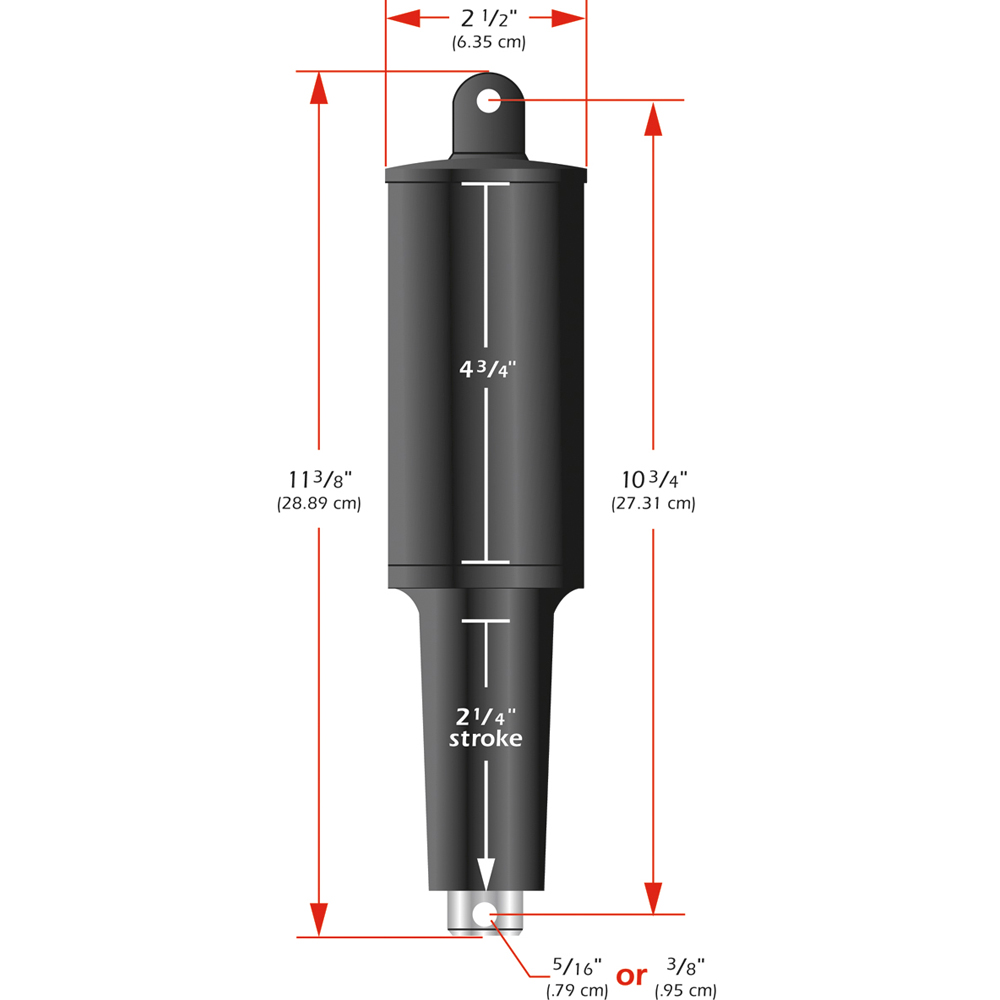

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches.   Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco’s ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco’s tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof “Plug & Play” Deutsch connectors eliminating the possibility of water intrusion.
• 24 Volt
• 5/16″ mounting hardware
• 6 foot cable
