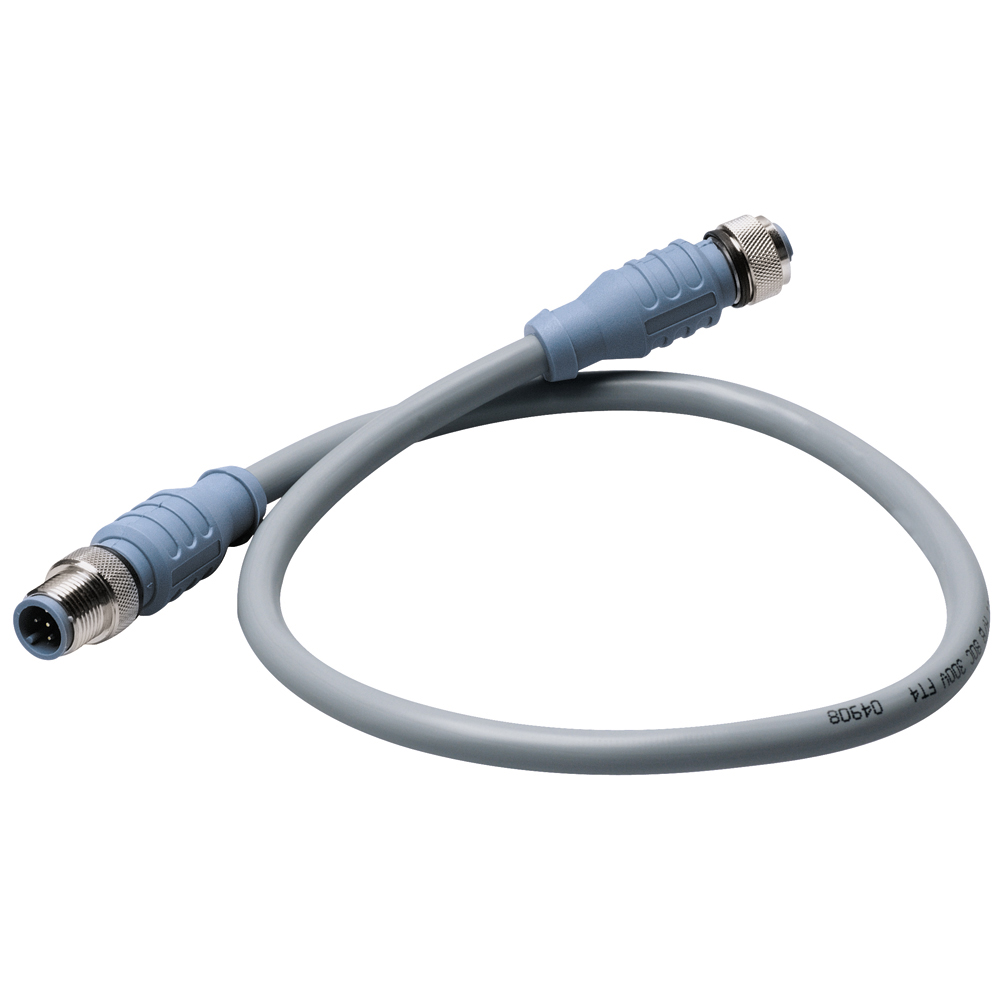

Maretron Micro Double-Ended Cordset – 10 Meter

Name: Maretron Micro Double-Ended Cordset - 10 Meter
Brand: Maretron
SKU: 31801
Price: 61.57 USD
Availability: InStock

$57.09

Out of stock

Maretron Micro Double-Ended Cordset - 10 MeterMaretronData Interface = NMEA 2000 | Cable Length (Feet) = 33'

Product SKU: 31801

Product Brand: Maretron

Product Currency: USD

Product Price: 61.57

Price Valid Until: 1970-01-01

Product In-Stock: InStock

Editor's Rating:
5

MARETRON MICRO DOUBLE – ENDED CORDSET 10 METER 000-166-952

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59″
Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V
Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4

NMEA: NMEA 2000 Approved
