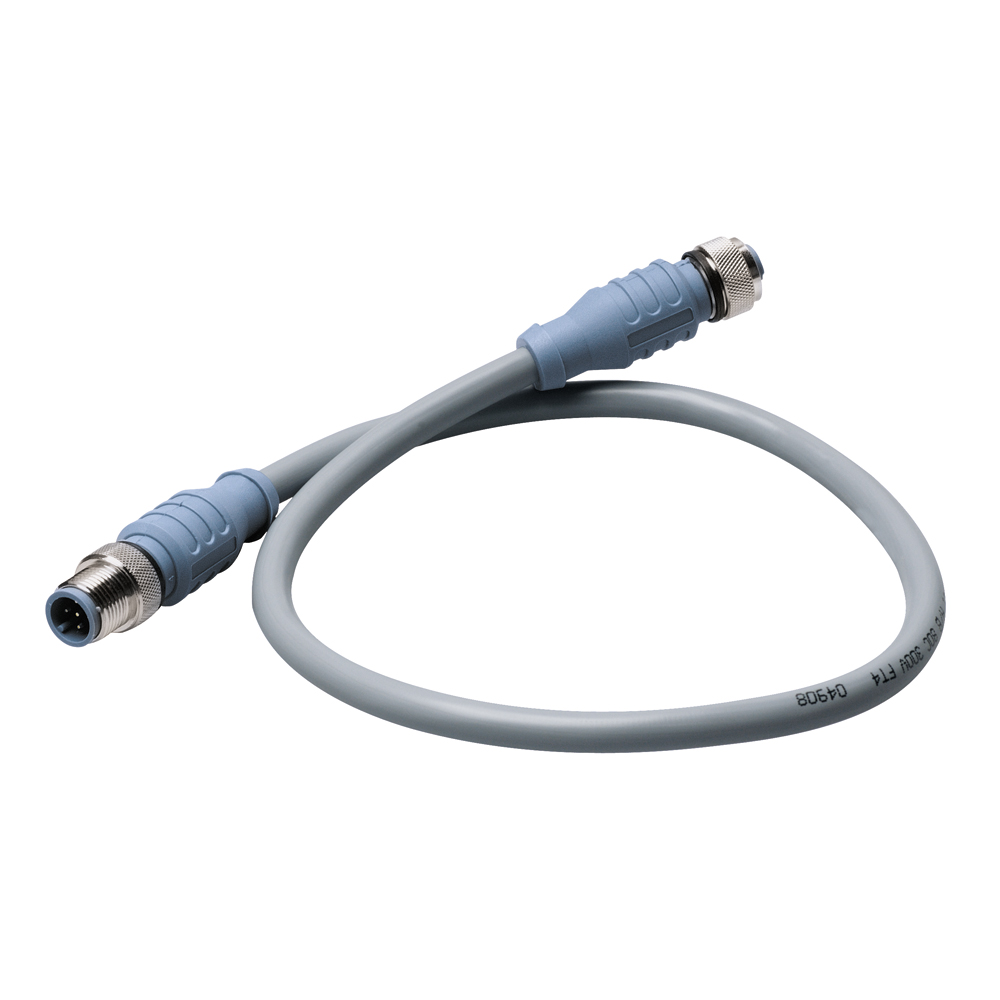

Maretron Micro Double-Ended Cordset 5 Meter

Maretron Micro Double-Ended Cordset 5 Meter

Original price was: $45.10.Current price is: $36.10.

Out of stock

SKU: 33359 Category: Brand:
Description

MARETRON MICRO DOUBLE ENDED CORDSET 5 METER

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    You have questions please contact us

    • Additional information
    Weight 0.8 lbs
    Dimensions 7 × 6 × 1 in
    Brand

    Maretron
    Manufacturer Part Number

    CM-CG1-CF-05.0
    Model

    CM-CG1-CF-05.0
    UPC

    873804001555
    Country

    MEXICO
    Type

    Maretron
