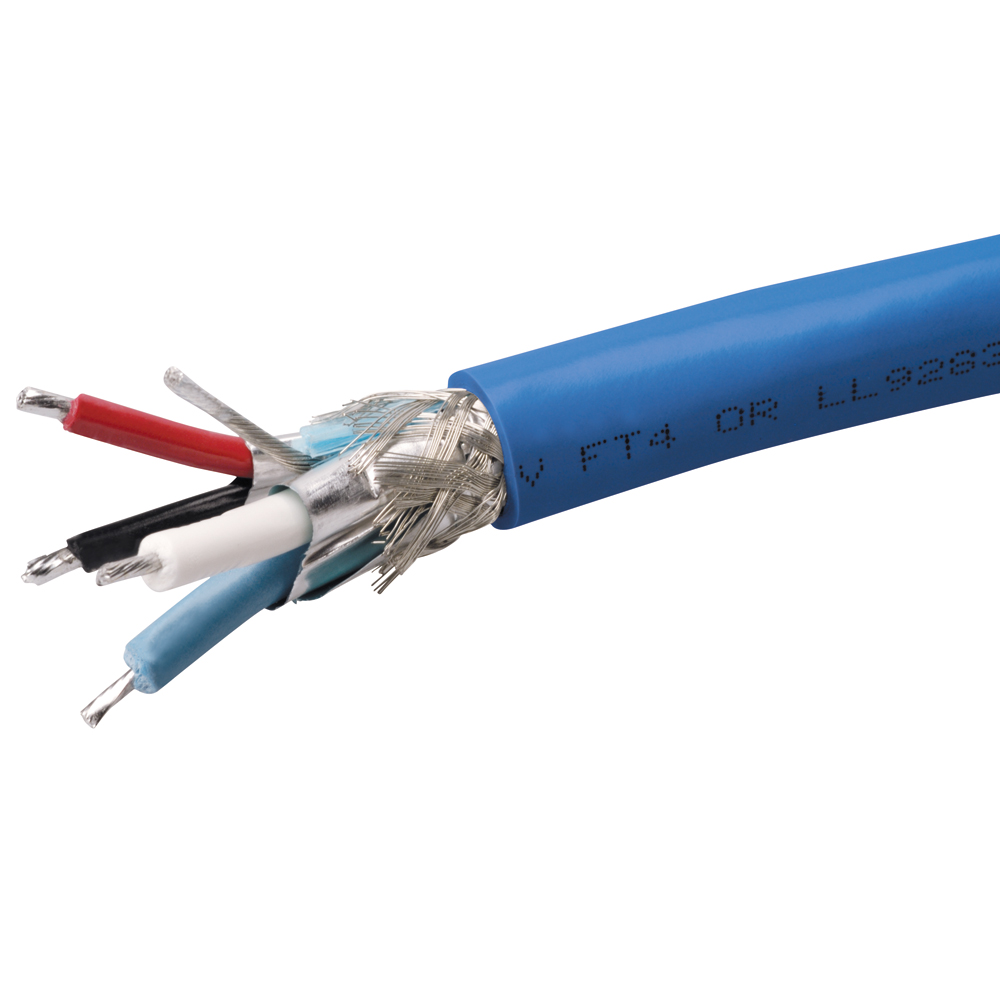

Maretron Mid Bulk Cable - 100 Meter - Blue

Maretron Mid Bulk Cable – 100 Meter – Blue

Original price was: $566.83.Current price is: $480.18.

Out of stock

SKU: 47024 Category: Brand:
Description

MARETRON MID BULK CABLE 100M SPOOL-BLUE

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray – DG1 PVC/Blue – DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire: 2×16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair

  • Wire: 2×20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    You have questions please contact us

    • Additional information
    Weight 25.3 lbs
    Dimensions 12 × 12 × 11 in
    Brand

    Maretron
    Manufacturer Part Number

    DB1-100C
    Model

    DB1-100C
    UPC

    873804003023
    Country

    UNITED STATES
    Type

    Maretron
