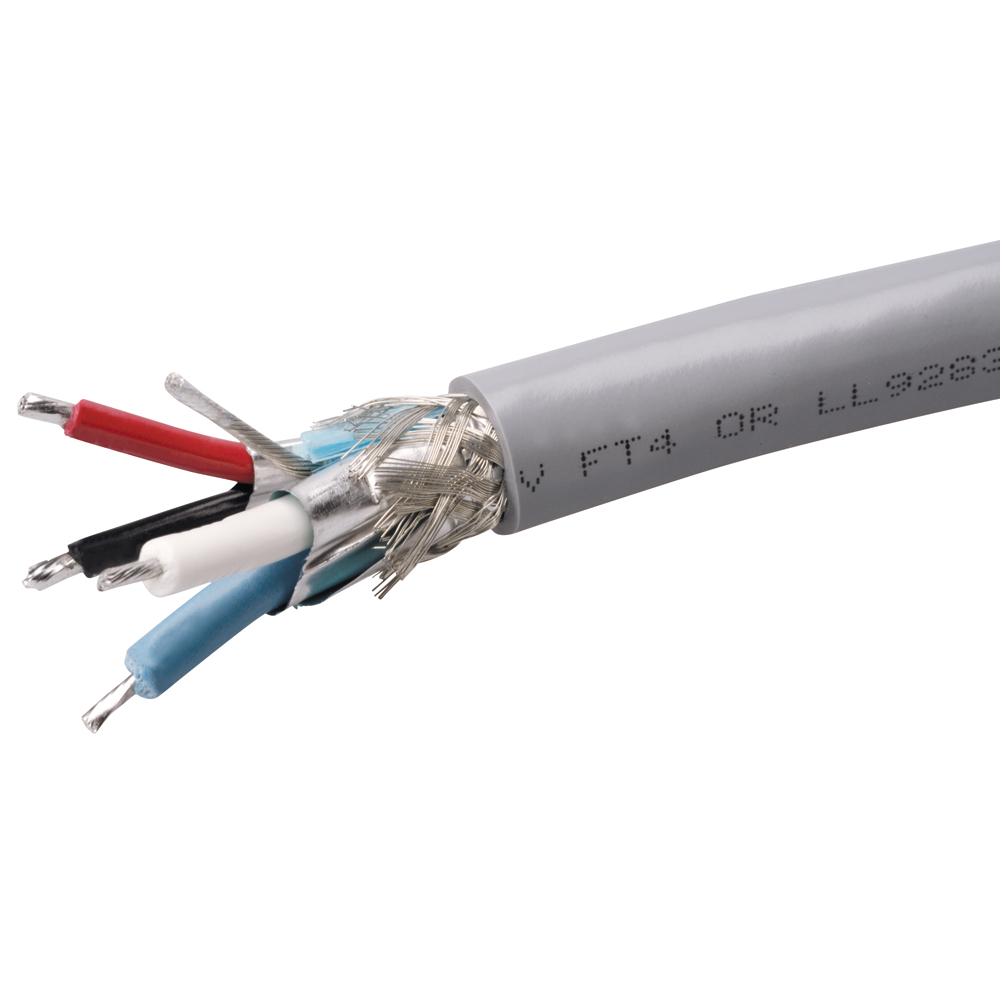

Maretron Mid Bulk Cable – 100 Meter – Gray

Name: Maretron Mid Bulk Cable - 100 Meter - Gray
Brand: Maretron
SKU: 47023
Price: 479.3 USD
Availability: InStock

Original price was: $553.63.Current price is: $479.30.

4 in stock

SKU: 47023 Category: ELECTRONICS > MARINE ELECTRONICS > MARINE CHARTPLOTTERS & GPS Brand: Maretron

Description

Maretron Mid Bulk Cable - 100 Meter - Gray

Maretron Mid Bulk Cable - 100 Meter - GrayMaretronCable Length (Feet) = 328'

Product SKU: 47023

Product Brand: Maretron

Product Currency: USD

Product Price: 479.3

Price Valid Until: 1970-01-01

Product In-Stock: InStock

Editor's Rating:
5

MARETRON MID BULK CABLE 100M SPOOL GRAY

Specifications

Overall

Outer Jacket Mat/Color: PVC/Gray – DG1 PVC/Blue – DB1

Insulation Material: PE (data wires), PVC (power wires)

Construction: 2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire: 2×16 (1.29mm) AWG

Resistance/Conductor: 4.1 Ohms/1000 ft max

Max Amperage: 14 Amps

Color Code: Red/Black

Data Pair

Wire: 2×20 (0.81mm) (AWG)

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 10.75 pF/ft

Color Code: White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC-61162-3

You have questions please contact us

Additional information

Weight	25 lbs
Dimensions	12 × 12 × 11 in
Brand	Maretron
Manufacturer Part Number	DG1-100C
Model	DG1-100C
UPC	873804003030
Country	UNITED STATES
Type	Maretron
