Description
NEWMAR BX-2 JUNCTION BOX

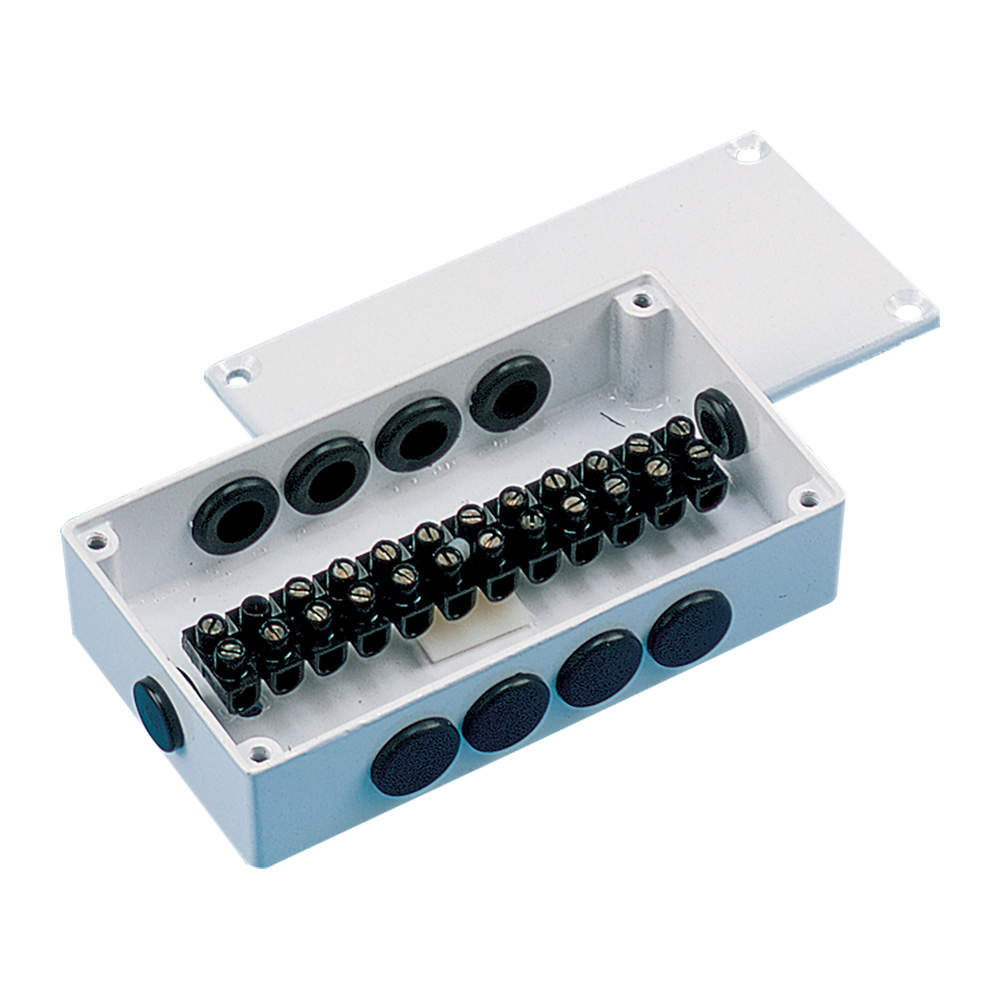

BX-2 Junction Box
This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.
Features:
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
Specifications:
- Number of Connector Strips: 1
- Positions per Strip: 12
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 8
- Cable Diameter: 0.37 in.
- Box Size: 4.4 x 2.4 x 1.2 in.
- Box Size: 11.2 x 6.1 x 3.1 cm
You have questions please contact us
Additional information
| Weight | 0.45 lbs |
|---|---|
| Dimensions | 8 × 4 × 2 in |
| Brand | Newmar Power |
| Manufacturer Part Number | BX-2 |
| Model | BX-2 |
| Type | Newmar Power |
