NEWMAR BX-3 JUNCTION BOX

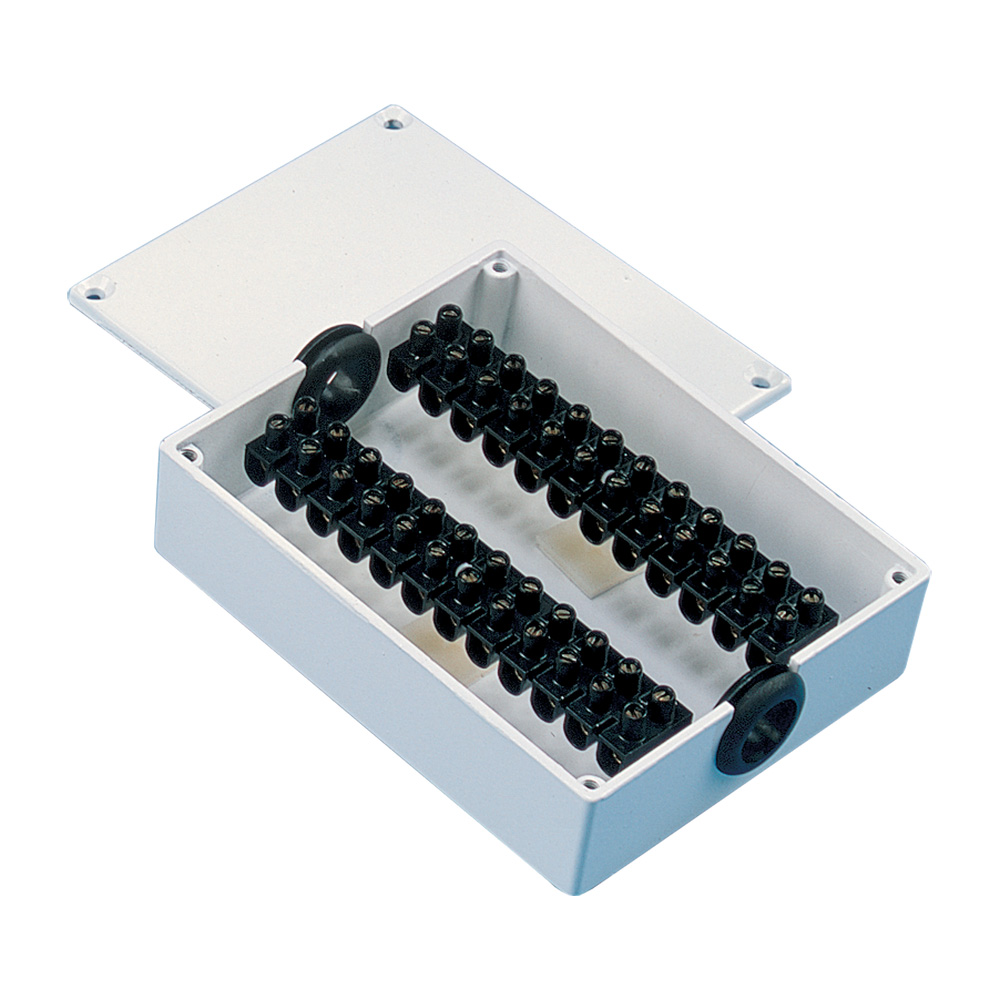

BX-3 Junction Box
This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.
Features:
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
Specifications:
- Number of Connector Strips: 2
- Positions per Strip: 11
- Max Wire Gauge: 14
- Max Amps (per position): 10
- Cable Entries: 2
- Cable Diameter: 0.59 in.
- Box Size: 4.7 x 3.7 x 1.3 in.
- Box Size: 11.9 x 9.4 x 3.3 cm
You have questions please contact us
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 9 × 6 × 2 in |
| Brand | Newmar Power |
| Manufacturer Part Number | BX-3 |
| Model | BX-3 |
| Type | Newmar Power |
