Quick Ted CT Downlight – 2W – SS Round Touch – Warm

QUICK TED CT LED DOWNLIGHT WARM 2W SS ROUND TOUCH

Ted CT Downlight – 2W – SS Round Touch – Warm

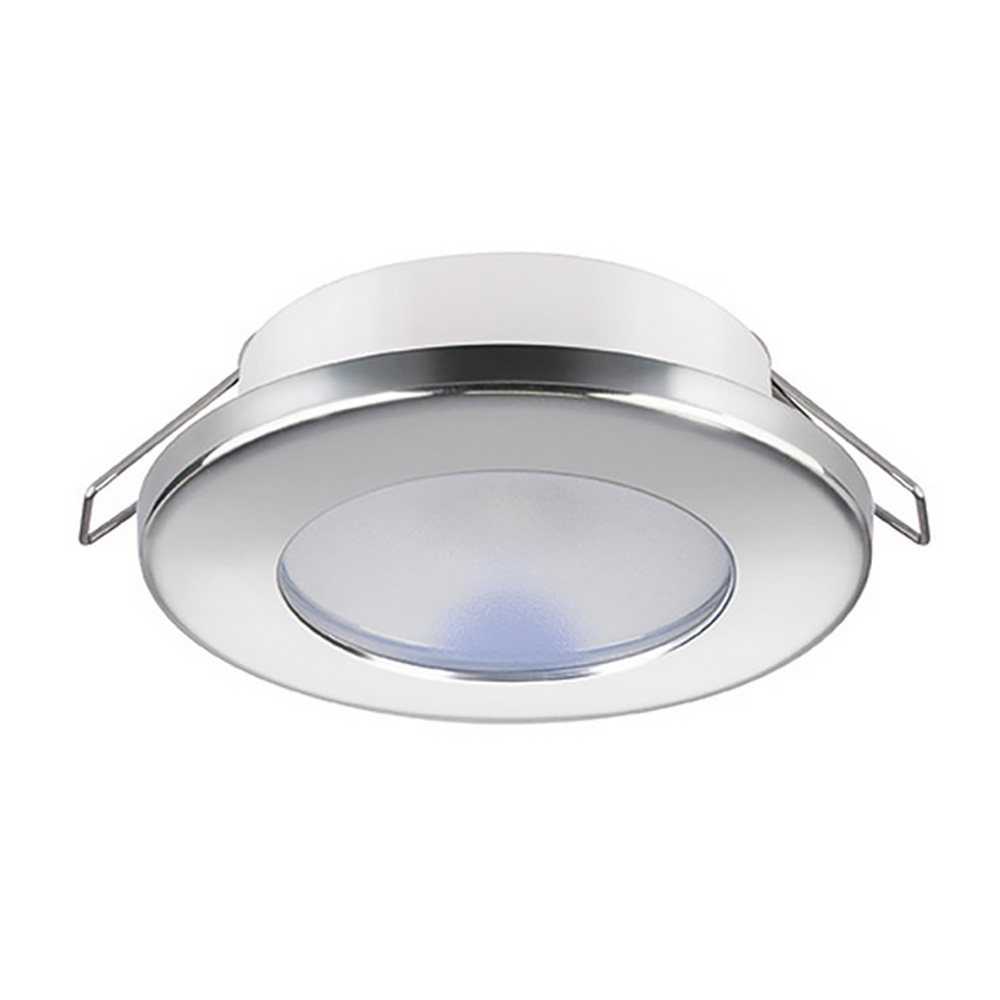

The Ted Club Touch is an IP40 recessed Power LED downlight. It has a 72mm round trim composed of AISI 316 stainless steel and a frosted lens.

Specifications:

• Weight: 0.25 lbs.
• Dimensions: 0.25 × 0.25 × 0.25 in
• Trim Finish: Stainless steel
• Power Type: Constant voltage
• Light Source: 1 x high luminosity
• Supply: 10 – 30 V
• Power Consumption: 2 W
• Current Consumption: 0.09 A @ 24V
• Average Lifetime: 50,000 hours
• Dimmable: Yes
• IP Security degree: 40
• Frame Diameter: 2-53/74″
• Recess: 5/8″
• Hole Diameter: 2-1/8″
• Frame Material: AISI 316 stainless steel
• Light Color: Warm
• Mounting: Screws

Warm White Specifications:

• Angle: 100°
• Light Flow: 105 lm
• Efficiency: 58 lm/W
• Light Beam – Distance 1 m: Diameter 2.43 m / 40.8 lux
• Light Beam- Distance 2 m: Diameter 4.85 m / 10.2 lux
• Light Beam- Distance 3 m: Diameter 7.28 m / 4.5 lux

You have questions please contact us
