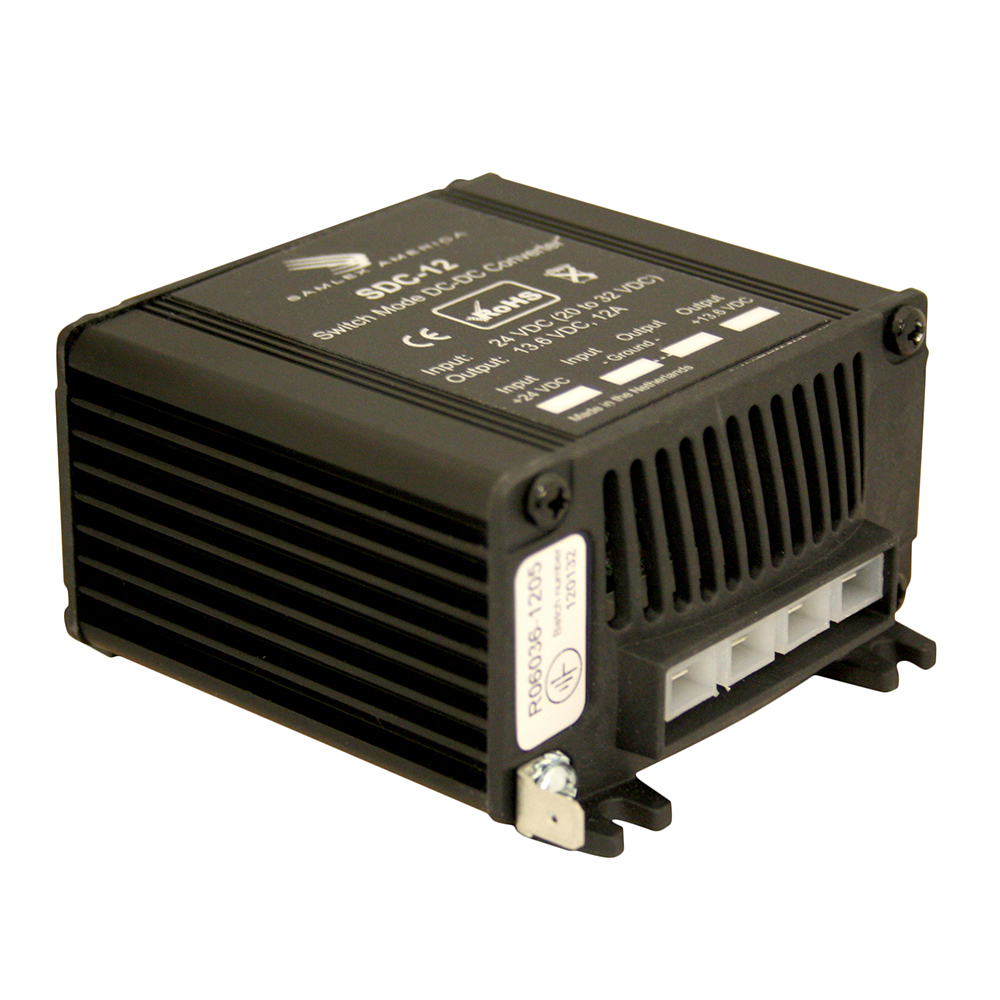

Samlex 12A Non-Isolated Step-Down 24VDC-12VDC Converter

SAMLEX SDC-12 SWITCHING DC-DC CONVERTER 20-32V INPUT 13.8V

12A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-12 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit, reverse polarity and over-voltage protection.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Cycle by cycle current limiting circuit
• Overvoltage protection
• Short circuit protection

Specifications:

• Input: 20-32 VDC
• Output: 13.8 VDC
• Amps: 12 Amps
• Weight: 1 (lbs)
• Weight: 0.45 (kg)
• Dimensions: 4 x 3.5 x 2 (in)
• Dimensions: 10.2 x 8.9 x 5.1 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
