Description

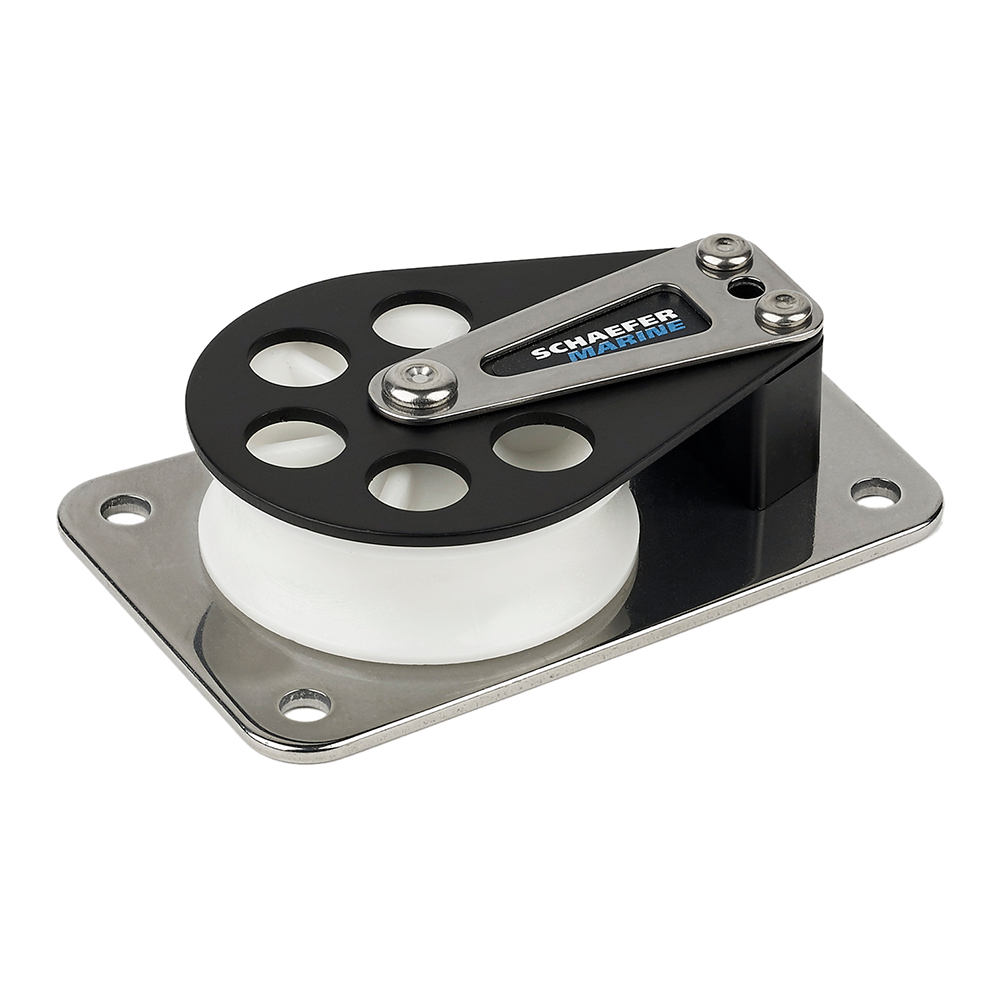

SCHAEFER SERIES 7 FLAT BASE CHEEK BLOCK ALUM CHEEK/DELRIN
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Dia. 2-3/8″ (60 mm)
- Max. Line 1/2″ (13 mm)
- Length 4-3/8″ (111 mm)
- Width 2-3/4″ (70 mm)
- Height 1″ (25 mm)
- Fasteners (4) 1/4″ RH (6 mm)
- C/C 3-5/8″ (92 mm)
- C/C (wide end) 2″ (51mm)
- C/C (narrow end) 1-9/16″
- SWL 2250 lbs. (1020 kg)
- Weight Alum. 9.6 oz. (272 g)
You have questions please contact us
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 6 × 3 × 1 in |
| Brand | Schaefer Marine |
| Manufacturer Part Number | 704-11 |
| Model | 704-11 |
| UPC | 740507010705 |
| Country | UNITED STATES |
| Type | Schaefer Marine |
