Description

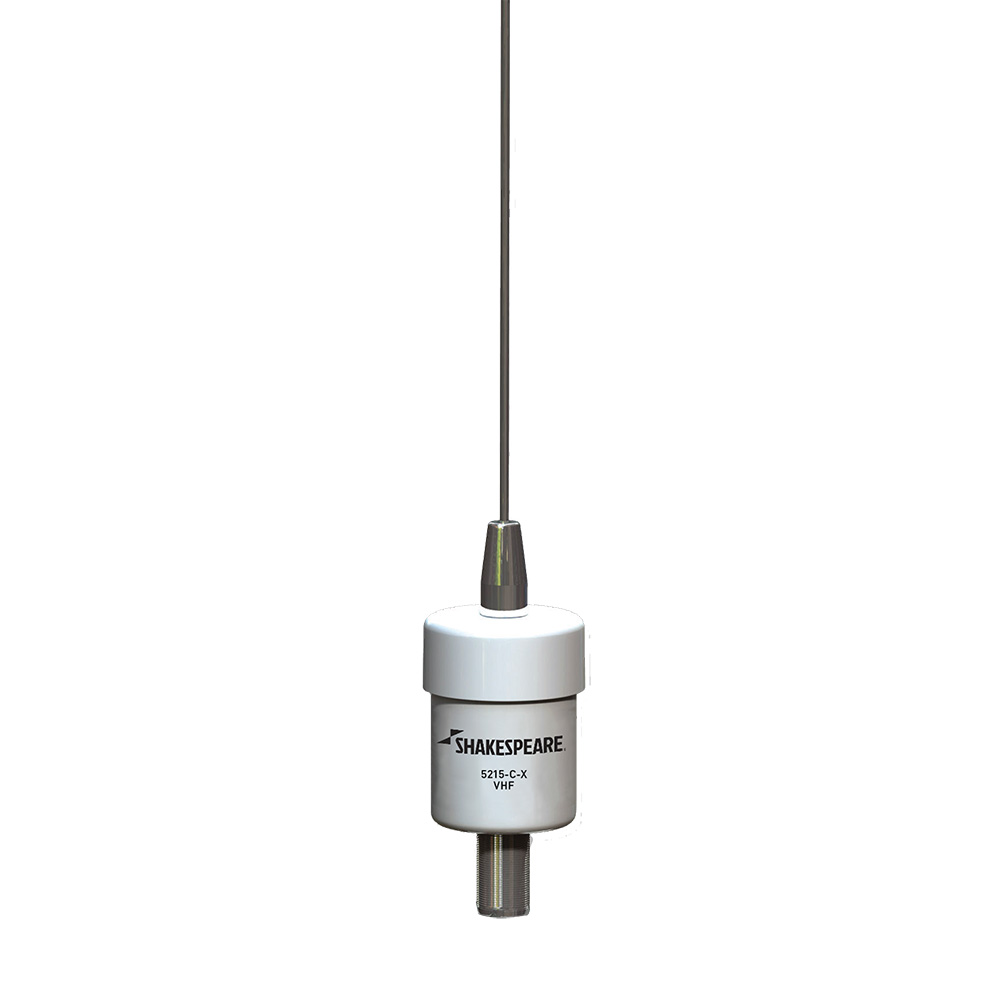

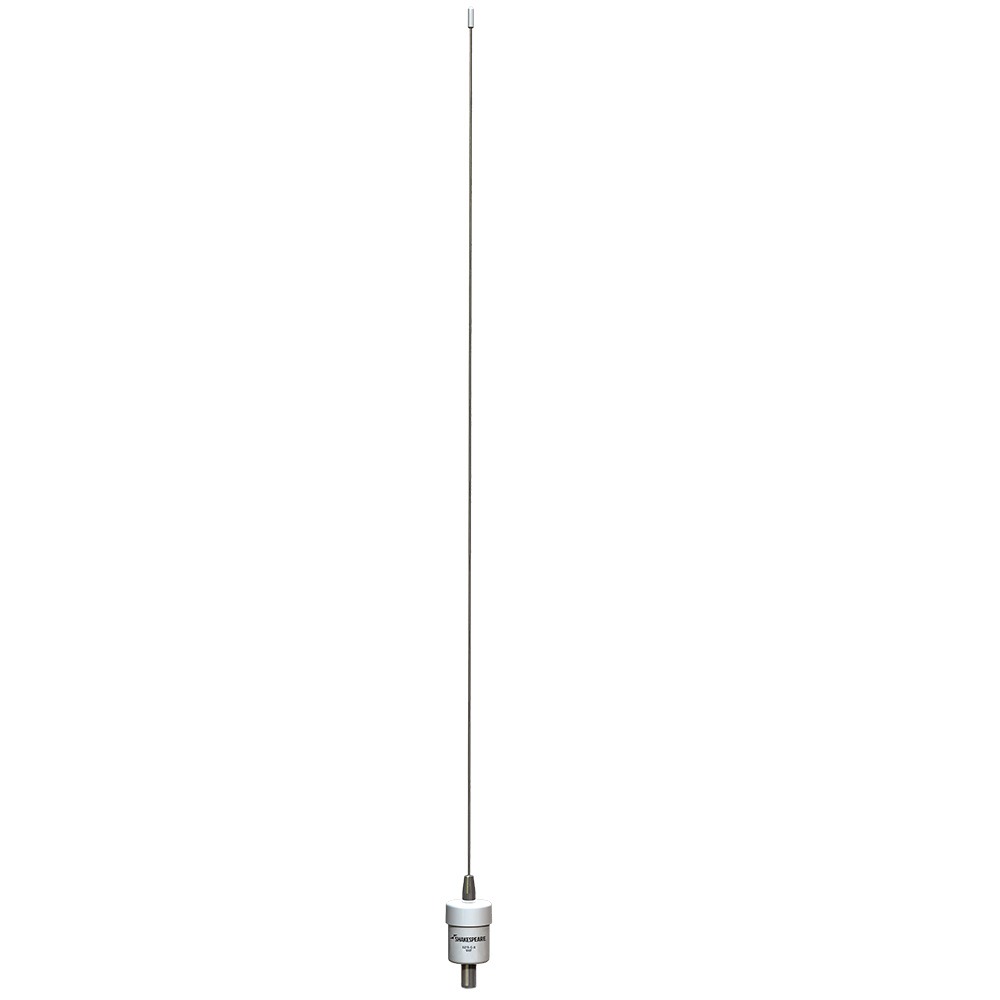

SHAKESPEARE VHF 3FT 5215-C-X WITH 60′ RG8X CABLE CONNECTOR
Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36″ LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
Same as the Style 5215 but comes with 60′ RG-8/X low-loss cable and PL-259 connectors.
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector
- Includes 60′ RG-8/X low-loss cable and PL-259 connectors.
- Mount: Stainless steel “L” bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 60′ RG-8X cable |
| Height (feet): | 3′ |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
You have questions please contact us
Additional information
| Weight | 4.2 lbs |
|---|---|
| Dimensions | 44 × 4 × 4 in |
| Brand | Shakespeare |
| Manufacturer Part Number | 5215-C-X |
| Model | 5215-C-X |
| UPC | 719441100155 |
| Country | CHINA |
| Type | Shakespeare |
