VERATRON 85MM (3-3/8″) VMH-35 MULTIFUNCTION GAUGE

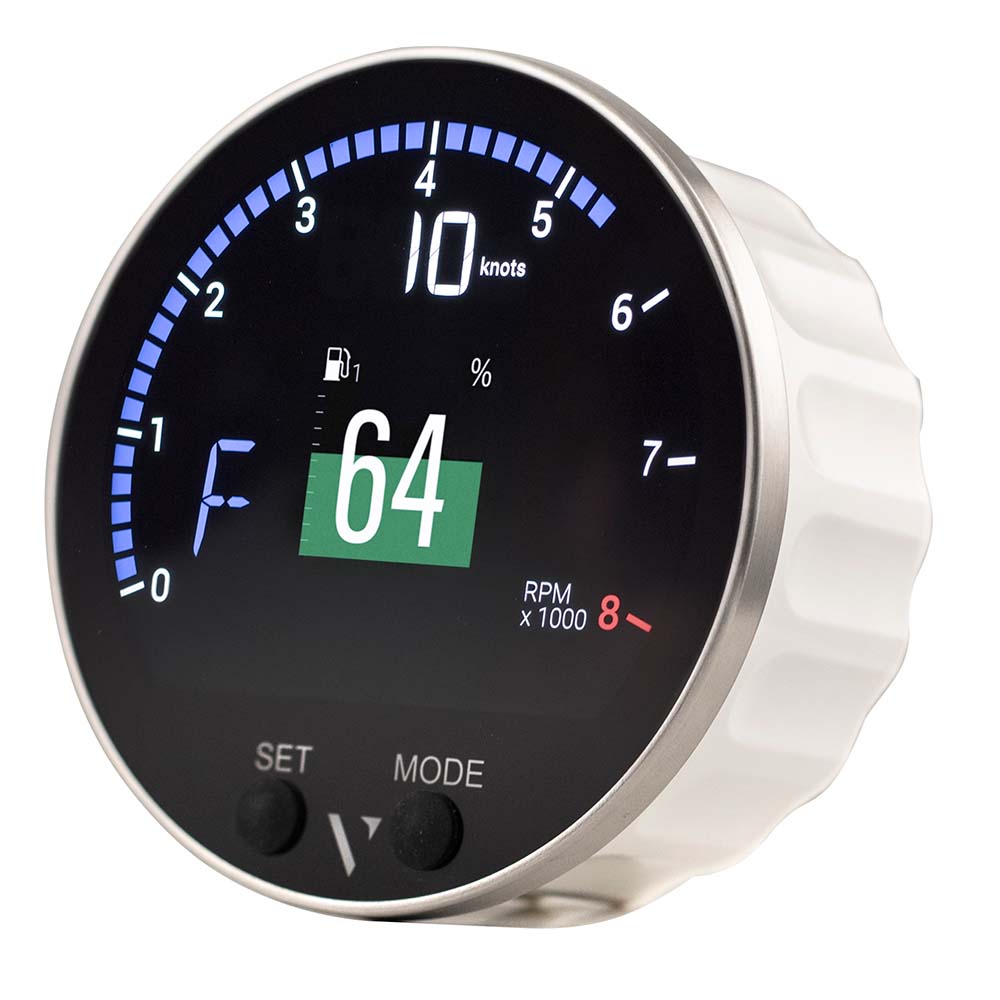

85mm (3-3/8″) VMH-35 Multifunction Gauge

The Veratron VMH 35 is engineered for single inboard or outboard engine applications.

The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters.  This saves the need for an additional external converter.  Highly adaptable to a wide range of onboard networks, it’s equipped with analog inputs, making it ideal for refitting with older engines.

An integrated GPS makes the VMH 35 the perfect standalone navigation solution.  It integrates speed, compass, and position into the engine data information.  A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

The Veratron VMH 35 has a mineral glass front that’s optically bonded to the sun-readable hybrid display.  A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.  Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back.

It fits a standard 3-3/8″ panel cutout size.

Features:

• Integrated high-performance GNSS receiver
• Integrated Analog to NMEA 2000 Gateway
• Waterproof to IPX7
• Stylish black-glass design with brushed stainless-steel ring
• New generation sun-readable color hybrid display
• Intelligent Battery Sensor (IBS) port
• NMEA 2000® certified

In the Box:

• VMH35 Gauge
• Mounting Spinlock
• Wire harness
• Safety Instructions

*Sold as an Individual
