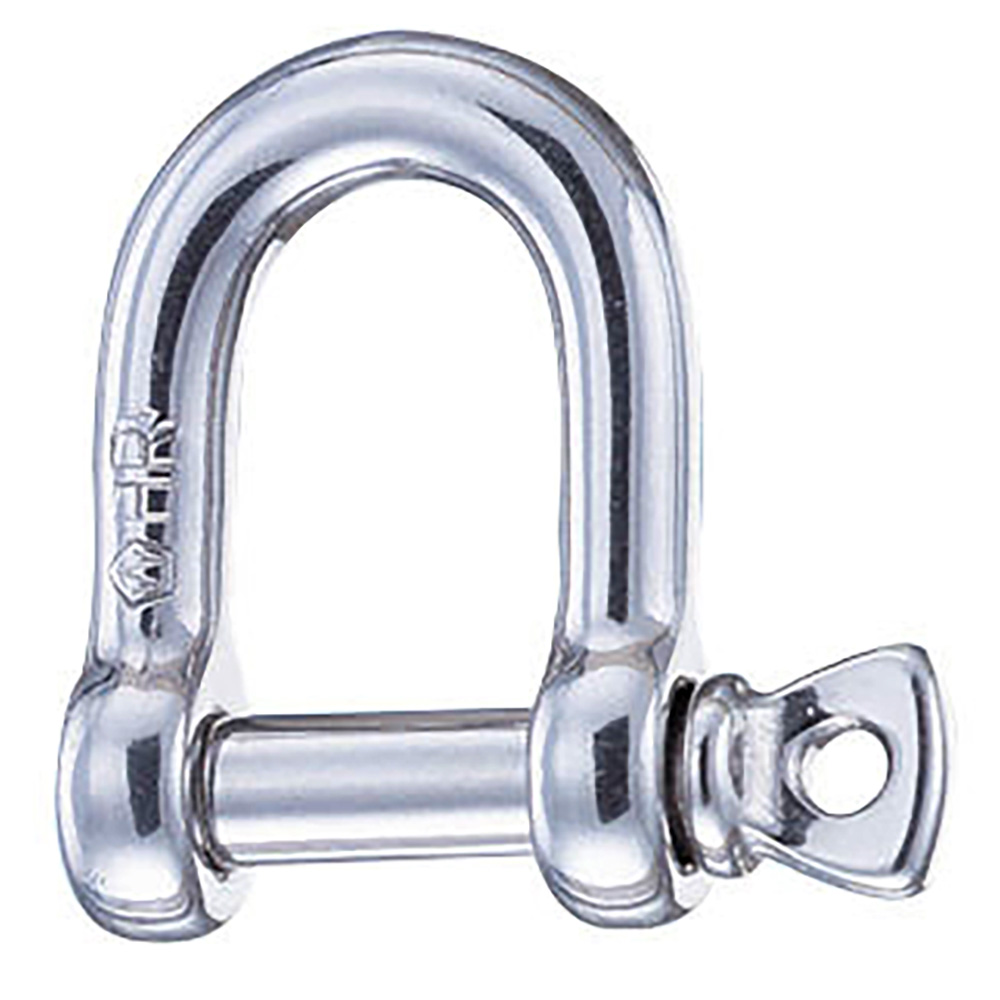

Wichard HR D Shackle – 14mm Diameter – 35/64″

WICHARD 9/16 HR D SHACKLE

HR D Shackle – 14mm Diameter – 35/64″

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head …
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11280 / (kg) 5120
• WLL: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 26450 / (kg) 12000
• Weight: (lb) 0.67 / (g) 304

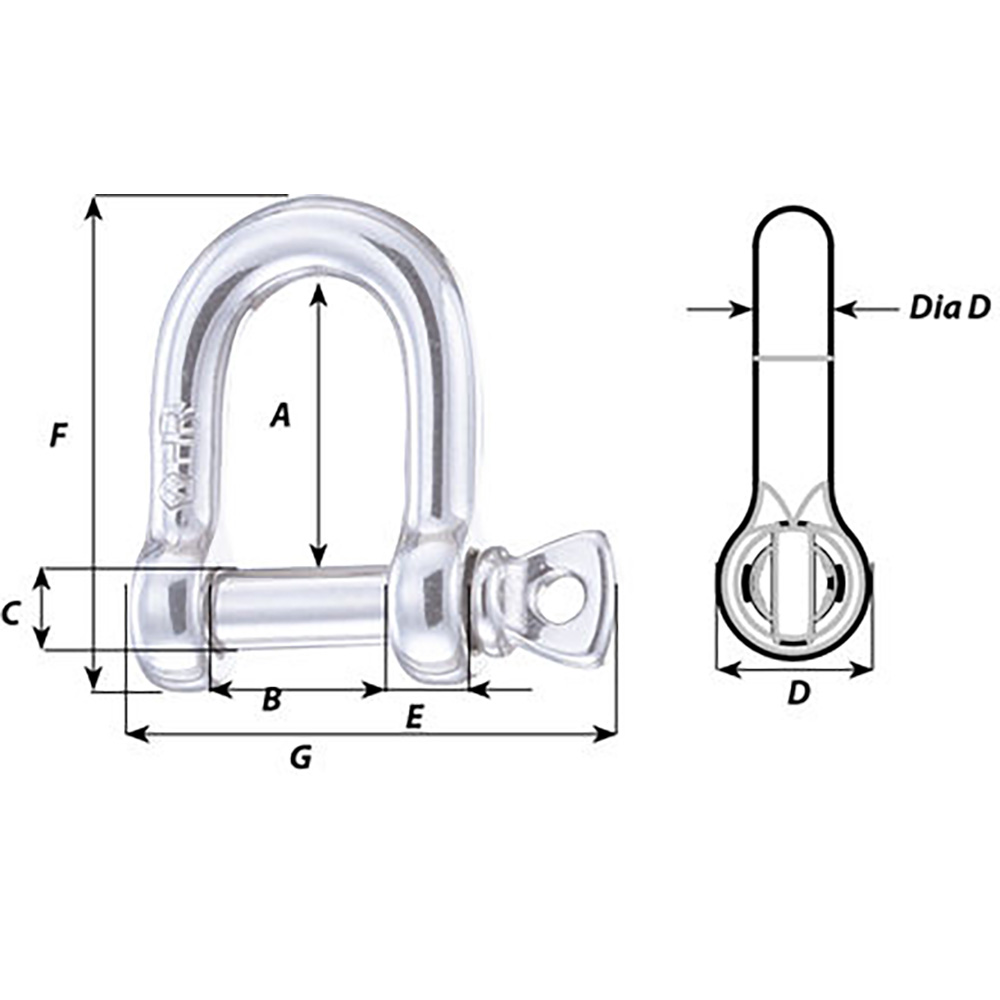

Dimensions:

• A: (inch) 1 59/64″ / (mm) 49
• B: (inch) 1 7/64″ / (mm) 28
• D diameter: (inch) 35/64″ / (mm) 14

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
