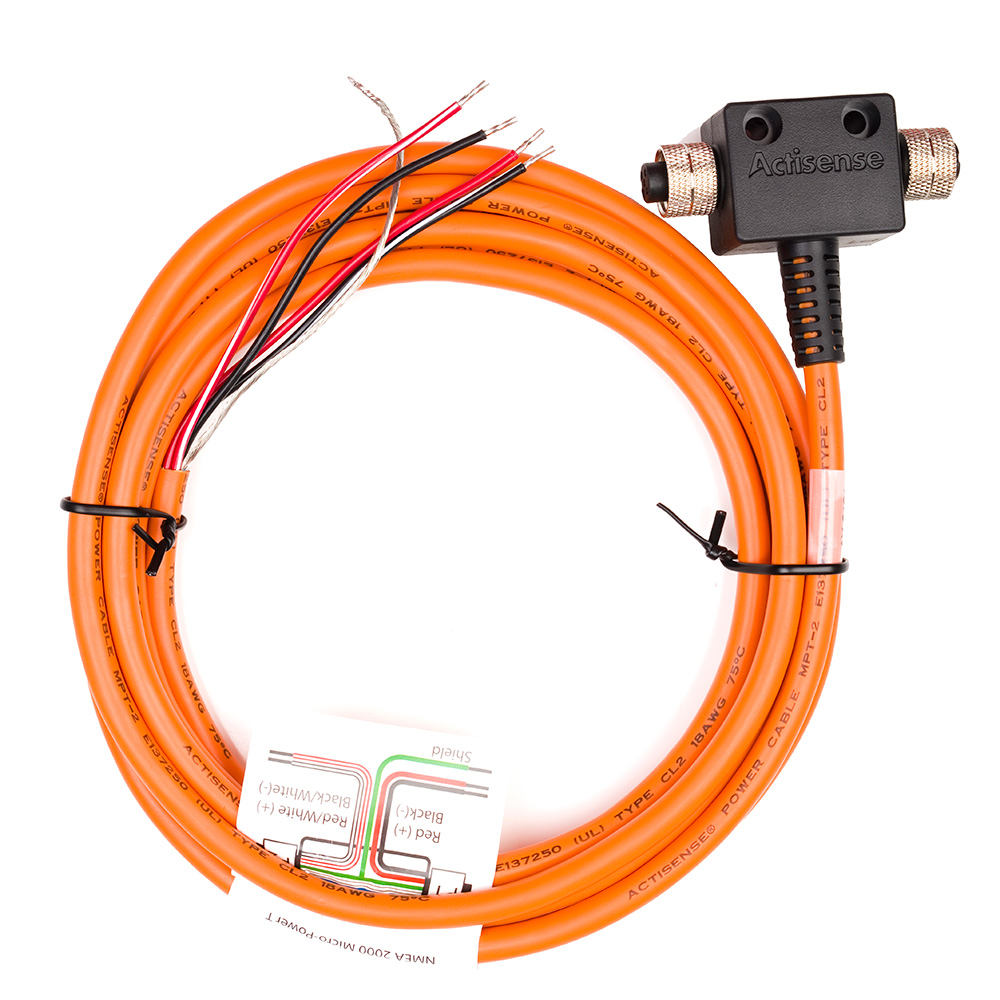

Actisense NMEA2000 Micro T-Piece w/Female Connectors & 3M UL Certified Cable

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

• Rated Current – 4A (each feed)
• Rated Voltage – 60VDC

Mechanical

• Female Contact – Phosphor bronze, gold plated
• Contact Carrier – PA66 (30% Glass Filled), Black
• Contact Polarization – Standard M12 -“A”- polarization
• Mating Thread – M12
• Screw Cap – Brass, nickel plated
• O-Ring Seal – Rubber, black
• Housing – PVC, black
• Cable Jacket Material – 0.8mm Nom. PVC, orange
• Cable Outer Diameter – 6.7mm ±0.254mm
• Cable Length – 3M
• Wire Length – 100mm (7mm stripped)
• Wire Jacket – PVC
• Wires – 18 AWG (stripped and tinned)
• Drain – 18 AWG (34-strand tinned copper)
• Shield – Al-mylar
• Weight – 290g

Approvals and Certifications

• Protection – IP67 (when mated)
• Operating Temperature – -20°C to +70°C
• Storage Temperature – -40°C to +85°C
