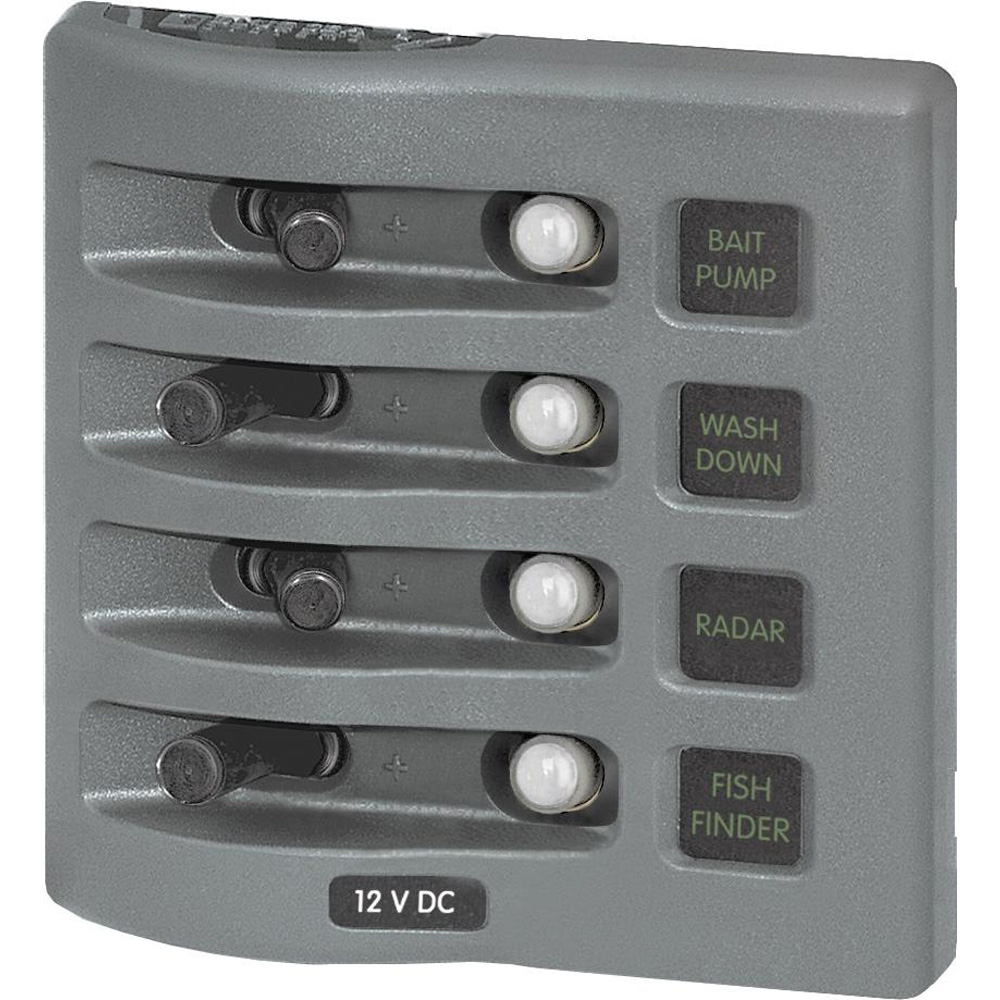

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel – 4 Position – Grey

Name: Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey
Brand: Blue Sea Systems
SKU: 20422
Price: 91.81 USD
Availability: InStock

Original price was: $181.49.Current price is: $91.81.

Waterproof = Waterproof | Voltage = 12v | AC/DC = DC | Max Breaker Quantity = 4

3 in stock

SKU: 20422 Category: VEHICLES & PARTS > VEHICLE PARTS & ACCESSORIES > WATERCRAFT PARTS & ACCESSORIES Brand: Blue Sea Systems

Schaefer Aluminum Deck Cleat - 6" Original price was: $83.99.Current price is: $53.85.
Digital Yacht NjordLINK+ NMEA 2000 Cloud Gateway Original price was: $499.95.Current price is: $389.54.
Ancor White 16 AWG Tinned Copper Wire - 250' Original price was: $68.19.Current price is: $41.23.
Perko 8" Open Base Cleat - Chrome Plated Zinc Original price was: $79.26.Current price is: $42.87.
Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus Original price was: $200.19.Current price is: $101.30.
Blue Sea 8689 m-Series Dual Circuit Plus 2 of PN 6011 Original price was: $619.29.Current price is: $313.76.
Faria Chesapeake White SS 5" Multifunction Gauge Original price was: $294.79.Current price is: $233.75.
Powerwinch Select Series Jack - 2500lb, Bolt-On, Flat Plate, Carbon Black Original price was: $138.95.Current price is: $101.66.
Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A Original price was: $87.99.Current price is: $44.28.
Ancor 6 to 1/0 AWG Heavy-Duty Hex Lug & Terminal Crimper Original price was: $334.39.Current price is: $155.44.

Description

WeatherDeck™ Water Resistant Circuit Breaker Panel

PN: 4374

Color: Gray

Features:

Rated IP67-temporary immersion for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting allows switching and dimming
Compatible with all Blue Sea Systems Digital Dimmers
Each panel can be mounted in four different orientations
Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12v / 24v DC
Circuit Protection: Circuit Breaker
Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
Panel Cumulative Rating: 45A
Backlit Label: Green LED
Backlighting Amperage: 10mA/Illuminated Circuit
Backlighting Voltage: 12 or 24v DC
Height: 4.3″
Width: 4.25″
Depth: 3.5″

Included:

(4) 4135 Push Button Reset Only Circuit Breaker Boot – Clear
(4) 4138 WeatherDeck® Toggle Switch Boot – Black
(4) 4150 WeatherDeck® Toggle Switch SPST – ON-OFF
(1) 4215 Waterproof DC Label Kit – 30 Black Square Labels V1
(4) 7056 Push Button Reset Only Quick Connect Circuit Breaker – 15 Amps
