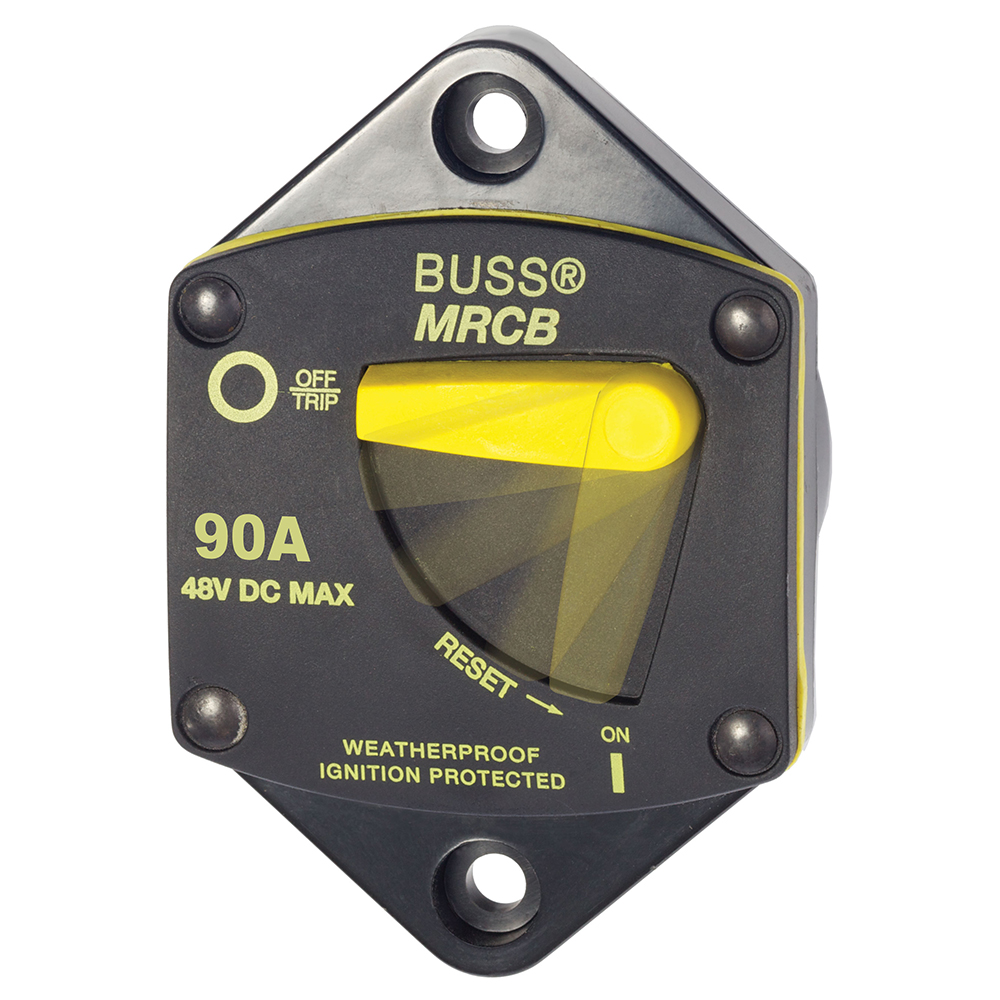

Blue Sea 7043 187 – Series Thermal Circuit Breaker – 90Amp

187 – Series Thermal Circuit Breakers – Panel Mount

90 Amp Circuit Breaker

PN:  7043

Features:

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Self-trimming case eliminates the need for mounting panels or trim bezels
• Round case permits easy installation with standard sized hole saw
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected – safe for installation aboard gasoline powered boats
