Description

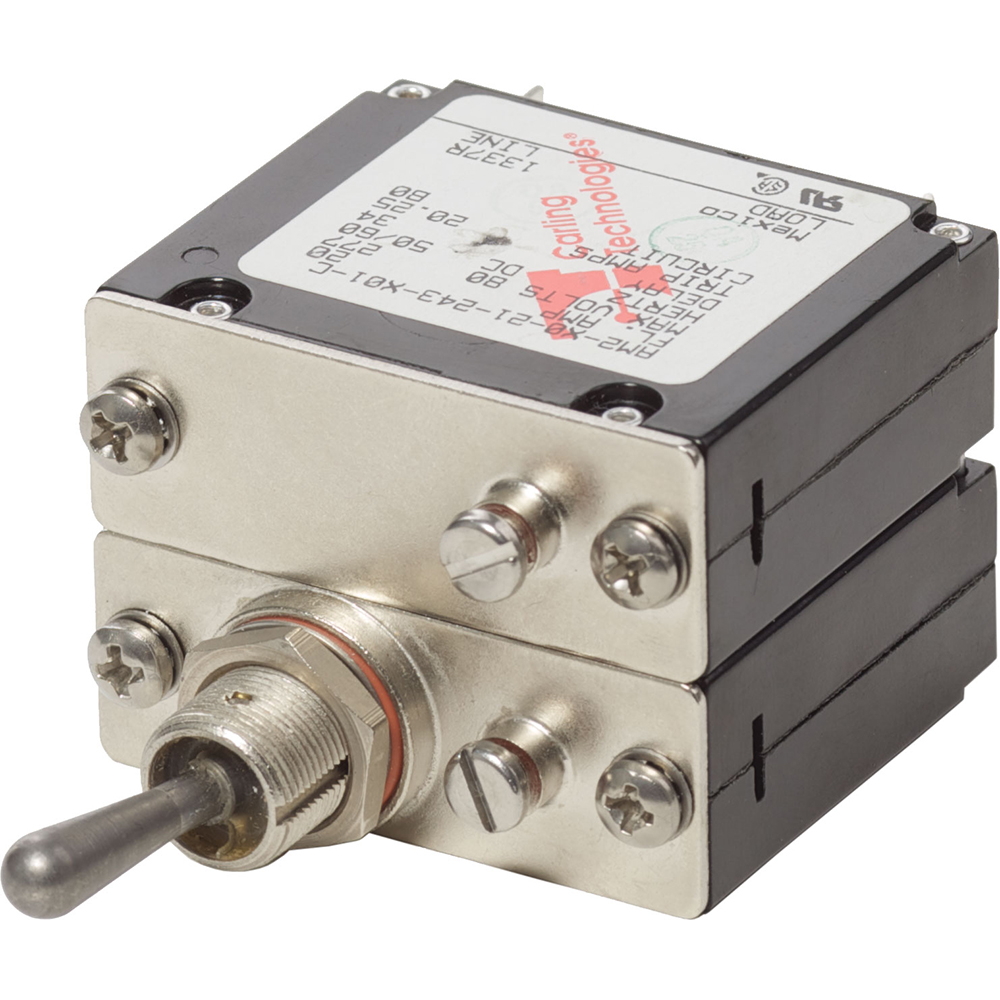

7313 COTS Military Grade A-Series 20 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 20A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic – Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30″-lb
- Screw Terminal Torque: 14″-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 4 × 2 × 2 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7313 |
| Model | 7313 |
| UPC | 632085173135 |
| Country | MEXICO |
| Type | Blue Sea Systems |
