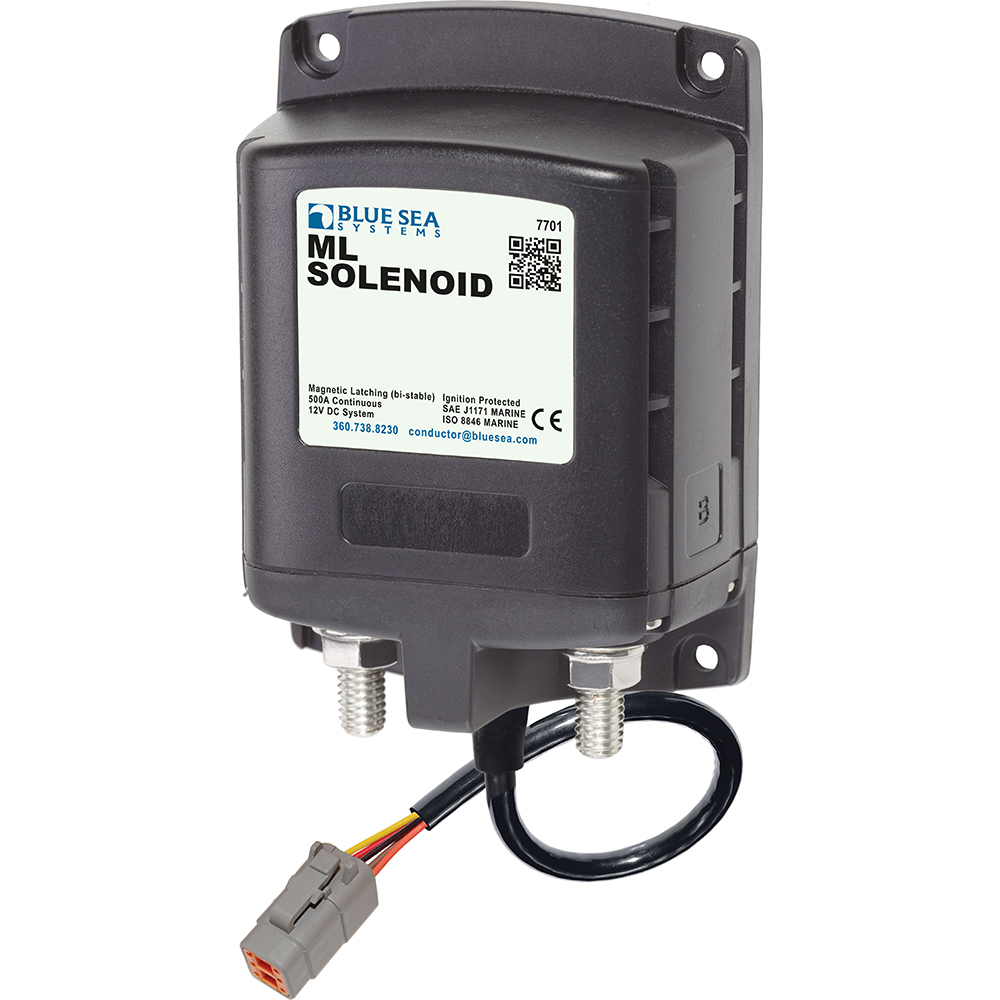

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector
Original price was: $306.89.$148.51Current price is: $148.51.
Order Cancellation Policy
- Orders can be cancelled within 1 hours of placement.
- Refunds will be processed within 3-5 business days.
- For orders that cannot be cancelled online, please contact our support team.
1 in stock
Description
BLUE SEA 7701100 ML SOLENOID 12V 500A W/ DEUTSCH CONNECTOR
7701100 ML Solenoid 12V 500A with Deutsch Connector
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
Features:
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in “ON” or “OFF” state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8″ -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8″ (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 12VDC
- Manual Control: No
- Coil Function: Bi-Stable
- Mounting: #10
- Amperage Operating Current Continous: 0A
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cable Size to Meet Ratings: 2x (4/0)
- Stud Material: Tinned Copper
- Terminal Ring Diameter Clearance: 1.18″ (29.97 mm)
- Terminal Stud Length: 0.875″ (22.23 mm)
- Terminal Stud Size: 3/8″ – 16 (M10)
- Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
You have questions please contact us
Additional information
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 11 × 7 × 3 in |
| Brand | Blue Sea Systems |
| Manufacturer Part Number | 7701100 |
| Model | 7701100 |
| UPC | 632085770112 |
| Country | MEXICO |
| Type | Blue Sea Systems |
