Boat Leveler 10″ x 8″ Trim Tab Set

10″ x 8″ Trim Tab Set

Features:

• Wiring – Color-coded wiring in 25′ to 40′ lengths with quick-connect fittings, meets federal standards for heat, pull, and insulation, making installation easy.
• Solenoids – They are custom-designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity-resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating drift back. Barb-type hose fittings provide tight, secure connections.
• Motor – A powerhouse with coated wiring and a thermal overload that resists temperature and amperage build-up. 1 3/4″ stack windings and top mounting eliminated oil leakage. The motor is mounted with stainless steel nuts and bolts and is easily disassembled.
• Brackets – Swivel-type brackets allow cylinders to be mounted and adjusted to any angle. Knockout pins act as shear pins it the tab strikes an object.
• Pump – Designed and engineered exclusively by Instatrim. The built-in bypass is factory set at 400 P.S.I. tolerance held to .00025. Amperage doesn’t exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.
• Motor Cover – 4 1/2″ D x 6″ W x 11″H, high impact ABS plastic cover with a built-in oil reservoir mounts easily with two screws. The filler is located in front. Our cover protects the motor from occasional washdown.

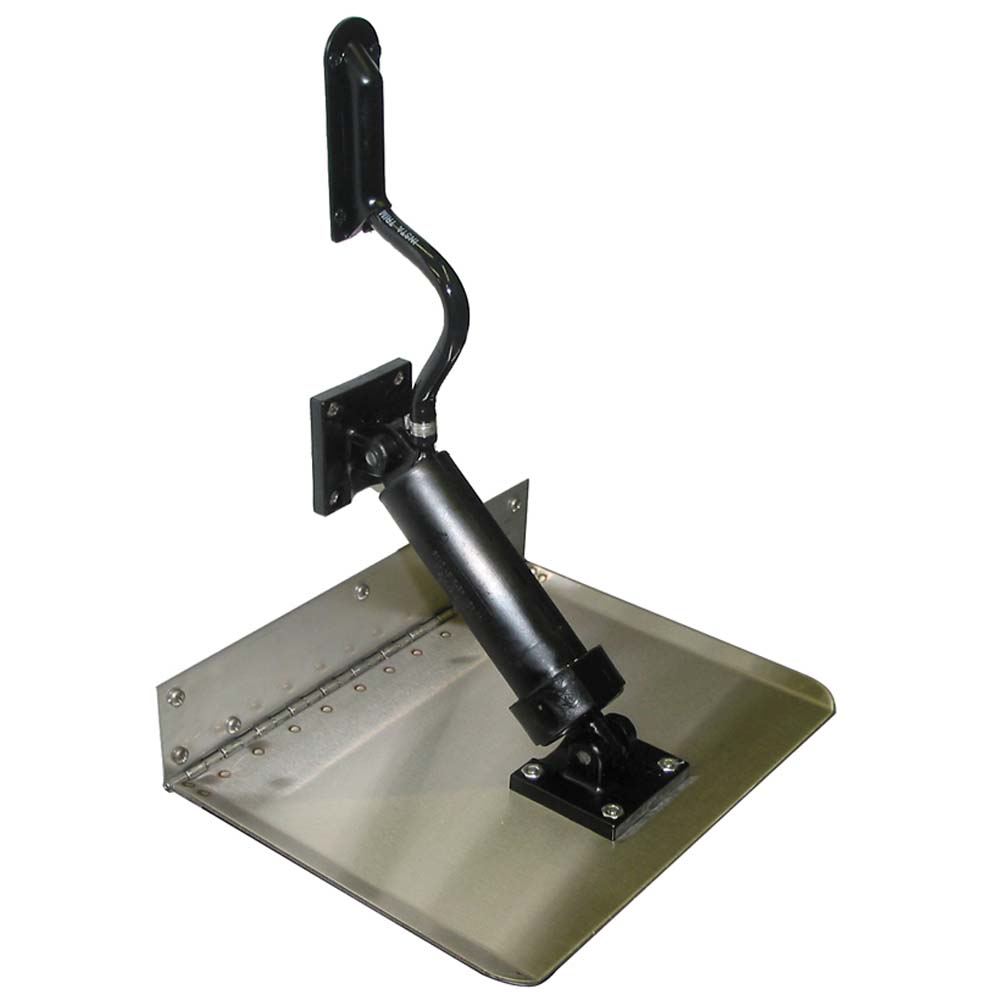

• Cylinders – Impact-resistant, fiberglass-reinforced nylon cylinders eliminate expansion and resist ultraviolet rays. Two expanding type seals, plus an O-ring, eliminate high and low-pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevent hose blow-off and breakage. A stainless steel spring retracts the cylinder when the boat is not in motion.
• Trim Tabs – 12-gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim’s hinges prevent most spray and can be used for transom or bottom mounting.
• Hose – Designed and manufactured exclusively for Insta-Trim with nylon-reinforced webbing and protective PVC coating. Rated at 2000 lb. burst pressure, 15′ of hose is supplied for your system. Entering the transom 6″ above the water line, the hoses are held securely with hose trim. Stainless steel clamps hold the hose to the barb fitting at the solenoid.
• Rocker Type Controls – Mounted on the dash, they are easy to operate. One pint of Insta-Trim biodegradable transmission oil, a funnel, and mounting hardware are supplied.
