Description
B60 Tilted Element™ 12°
12° titled version is designed for 8° – 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

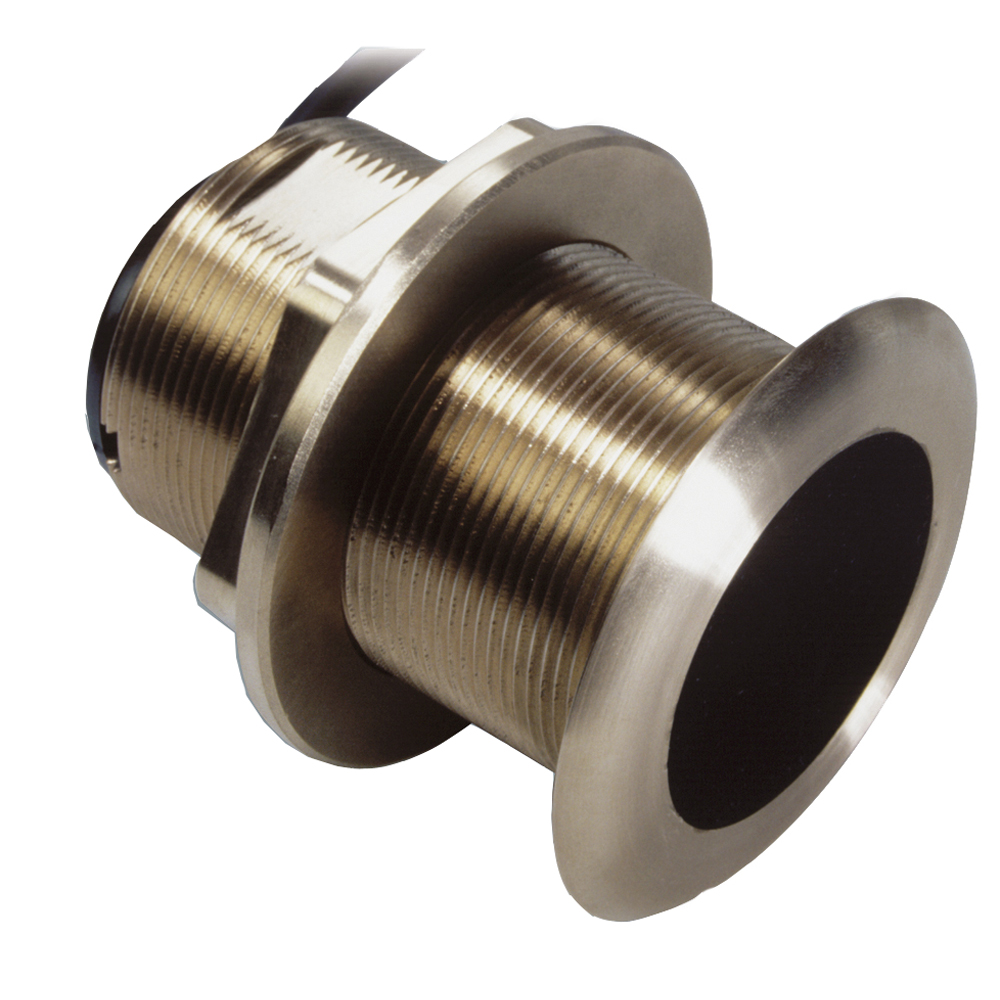

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 11 × 8 × 4 in |
| Brand | Raymarine |
| Manufacturer Part Number | E66086 |
| Model | E66086 |
| UPC | 723193660867 |
| Type | Raymarine |
