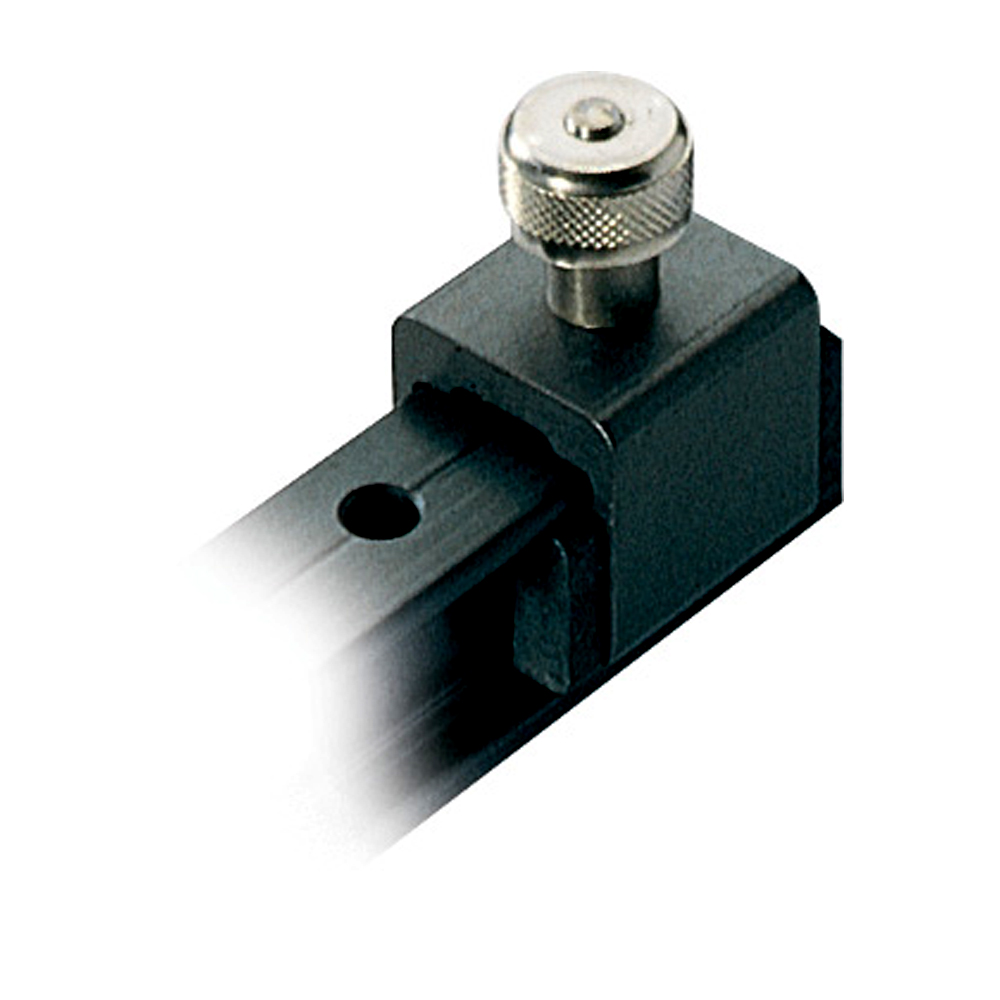

Ronstan Series 19 I-Beam Car – Adjustable Track Stop – Spring Loaded – 19mm (3/4″)

Series 19 I-Beam Car – Adjustable Track Stop – Spring Loaded – 25mm(1″)

Track Fastenings: To suit 5mm(3/16″) countersunk fasteners at 100mm(3-15/16″) centres.

Stop Holes: – 50mm (1-31/32″) centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners

Minimum Curve Radius

• For 51mm(2″) car Min horizontal ‘A’ curve radius = 400mm (15-3/4″). Min horizontal ‘B’ curve radius = 400mm (15-3/4″).

• For 86mm (3-3/8″) car Min horizontal ‘A’ curve radius = 1200mm (47-1/4″). Min horizontal ‘B’ curve radius = not suitable.

• For 105mm (4-3/16″) car Min horizontal ‘A’ curve radius = 400mm (15-3/4″). Min horizontal ‘B’ curve radius = not suitable.

  Applications:


  • Mainsheet and self-tacking jib travellers on dinghies and catamarans

  • Mainsheet systems on boats to 9M (28′)

  Materials:
  Stainless body & plunger
