Description

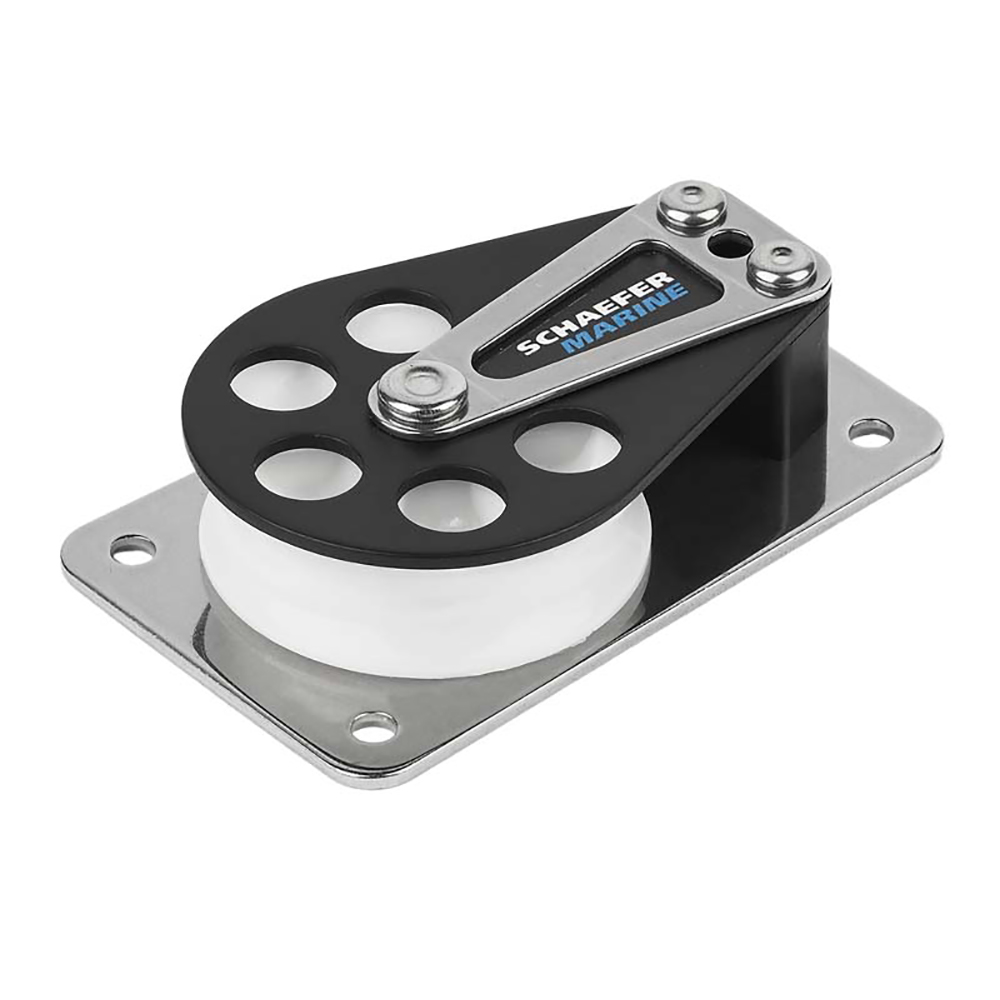

Series 5 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Diameter 2″ (51 mm)
- Max. Line 7/16″ (11 mm)
- Length 3-5/8″ (92 mm)
- Width 2-7/32″ (57 mm)
- Height 7/8″ (22 mm)
- Fasteners (4) #10 RH (5 mm)
- C/C 3″ (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 5.9 oz. (167g)
- Max. Line 7/16″ (11mm)
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 4 × 1 in |
| Brand | Schaefer Marine |
| Manufacturer Part Number | 504-11 |
| Model | 504-11 |
| UPC | 740507011634 |
| Country | UNITED STATES |
| Type | Schaefer Marine |
