Description

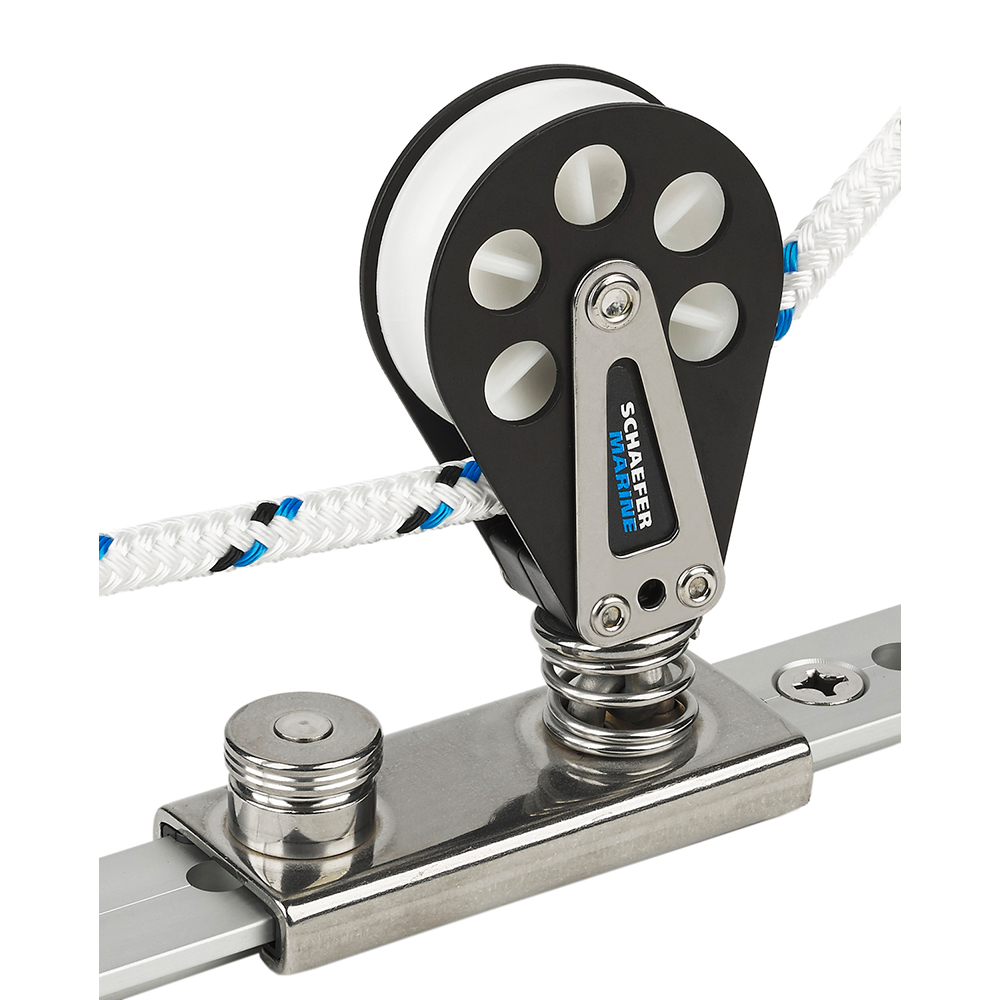

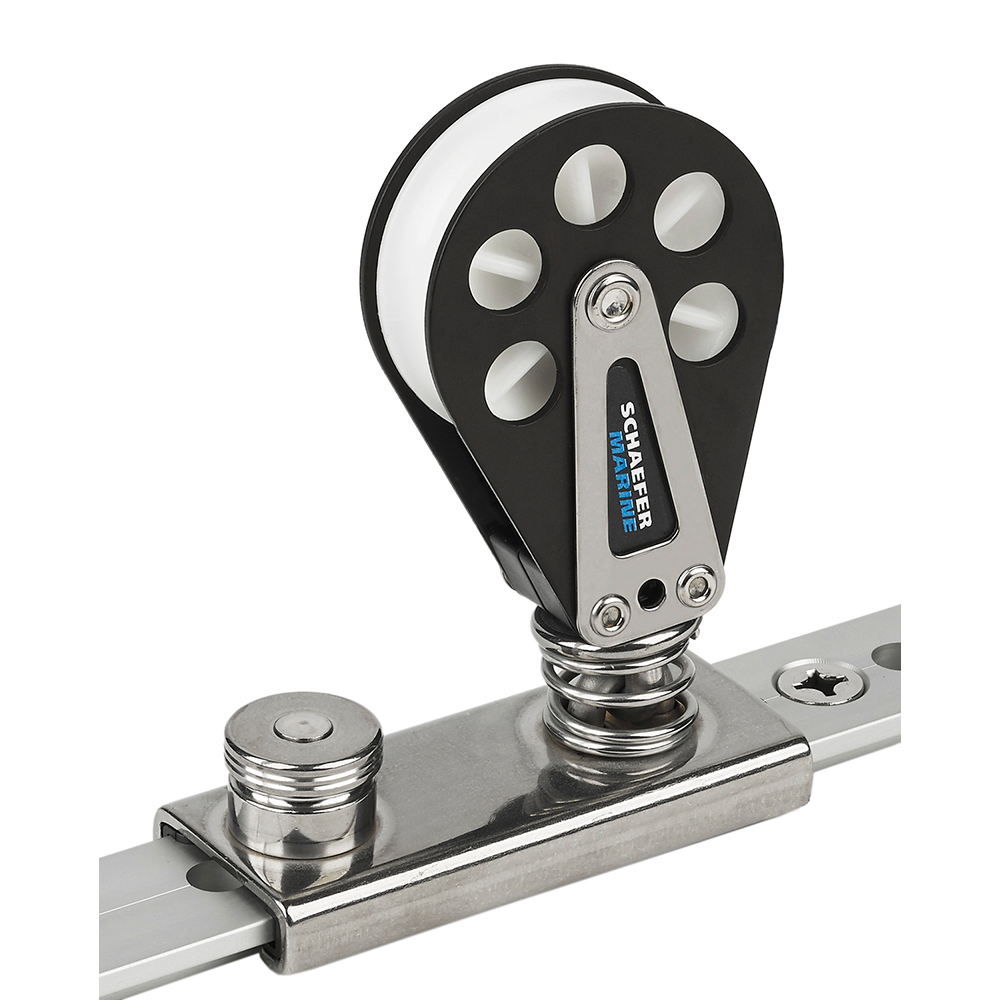

Spring Loaded/Lined Slide/Aluminum for 1-1/4″ T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm)
- Max. Boat Length 33′ (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8″ (60 mm)
- Max Line 1/2″ (12 mm)
- Length 4″ (102 mm)
- Width 1-9/16″ (39 mm)
- Height 4-15/16″ (126 mm)
- Bearing Height 2-3/8″ (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 12 oz. (340 g)
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 2 in |
| Brand | Schaefer Marine |
| Manufacturer Part Number | 704-92 |
| Model | 704-92 |
| UPC | 740507022449 |
| Country | UNITED STATES |
| Type | Schaefer Marine |
