Description

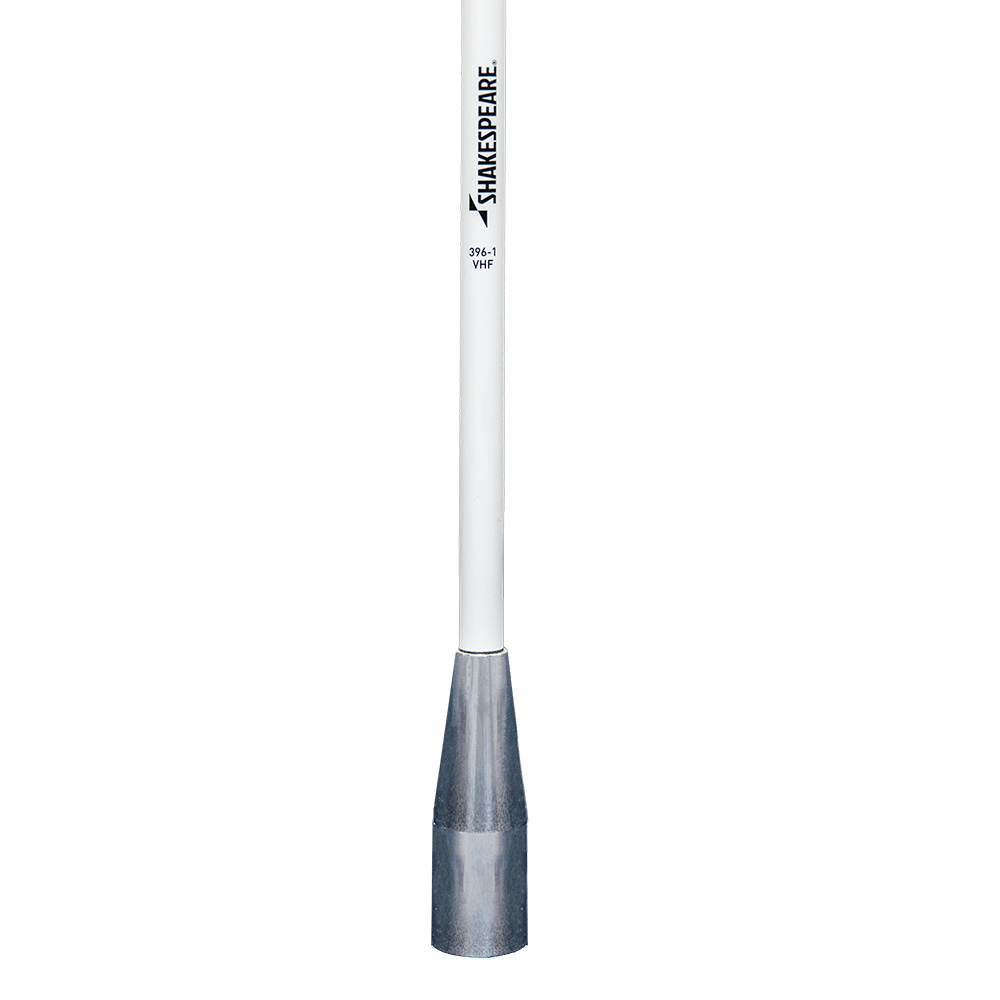

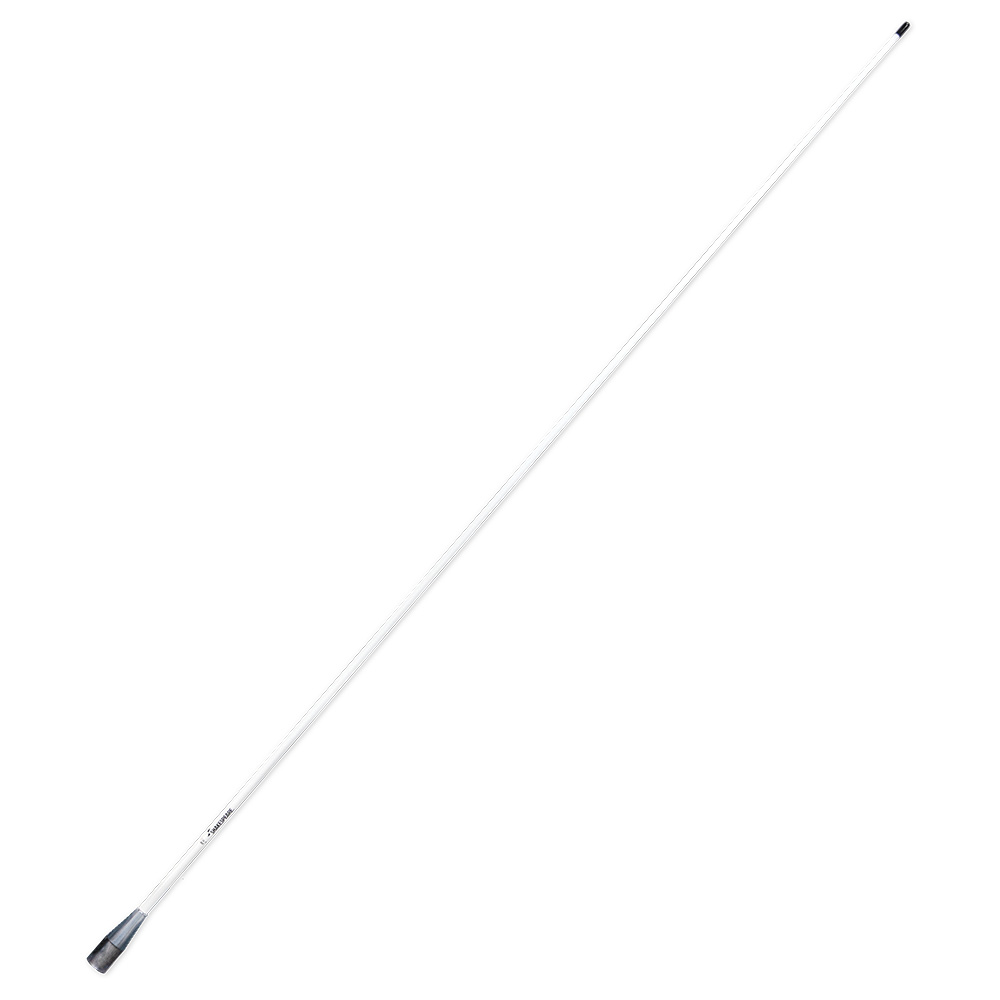

Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15′ RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15′ RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Additional information
| Weight | 2.9 lbs |
|---|---|
| Dimensions | 63 × 3 × 3 in |
| Brand | Shakespeare |
| Manufacturer Part Number | 396-1 |
| Model | 396-1 |
| UPC | 719441100018 |
| Country | CHINA |
| Type | Shakespeare |
