Description

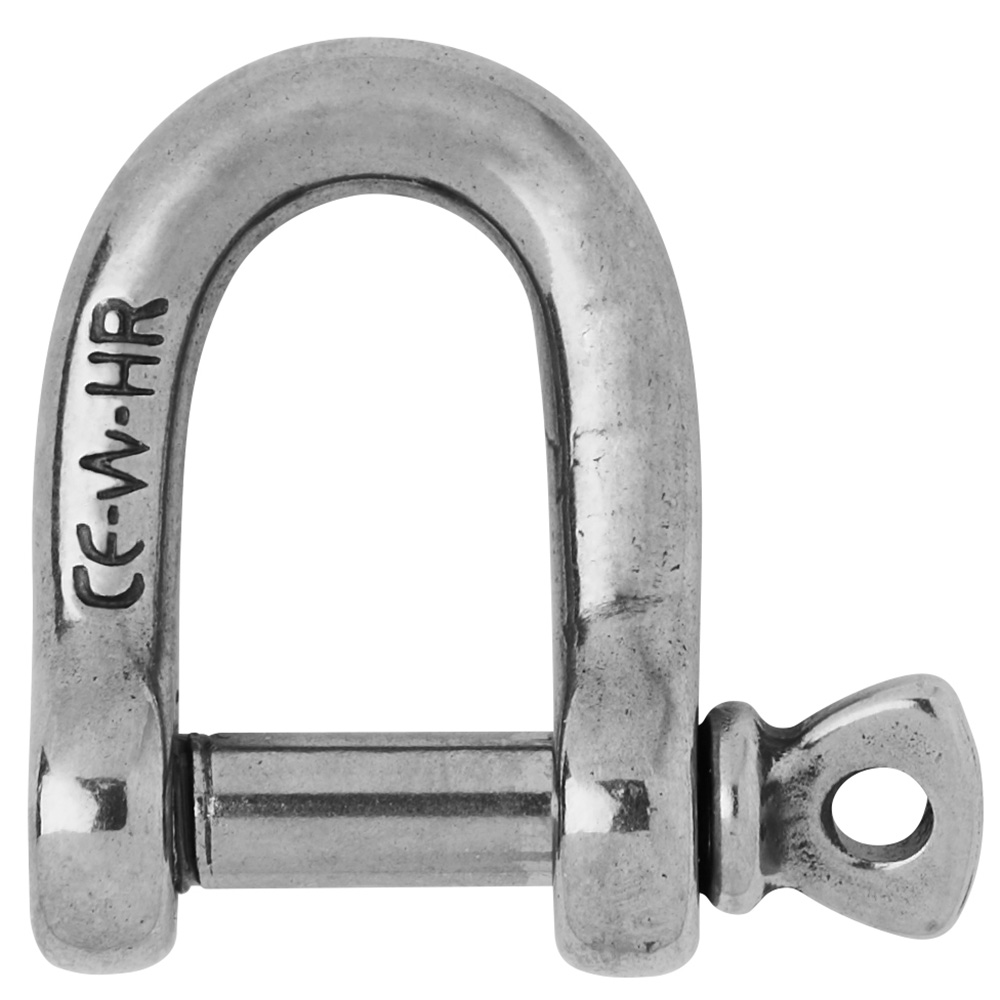

HR D Shackle – Diameter 15/64″
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 2290
- WLL (lb) 1010
- Breaking load (lb) 5070
- Weight (lb) 0.053

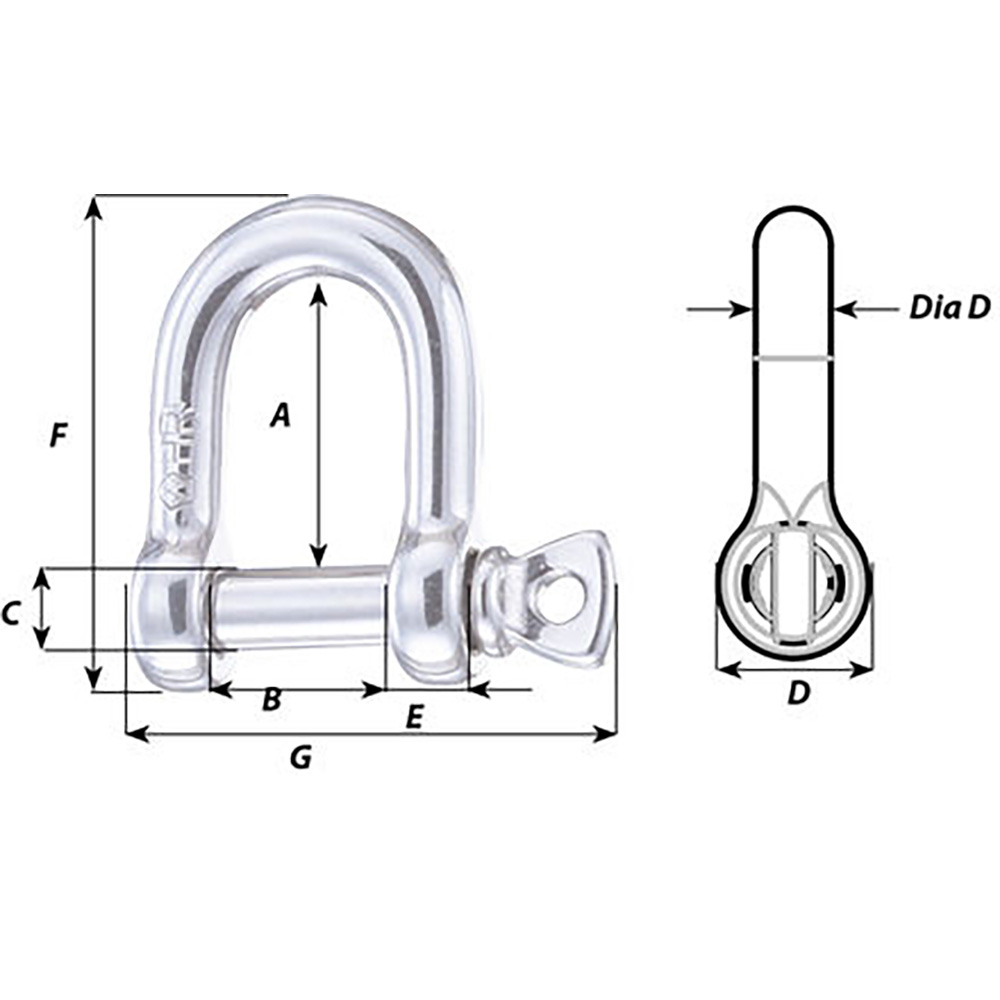

- A (inch) 25/32″
- B (inch) 15/32″
- C (inch) 15/64″
- D (inch) 5/8″
- D diameter (inch) 15/64″
- E (inch) 9/32″
- F (inch) 1 13/16″
- G (inch) 1 13/16″
Additional information
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 6 × 5 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 11203W |
| Model | 11203W |
| UPC | 768536112030 |
| Type | Wichard Marine |
