Description

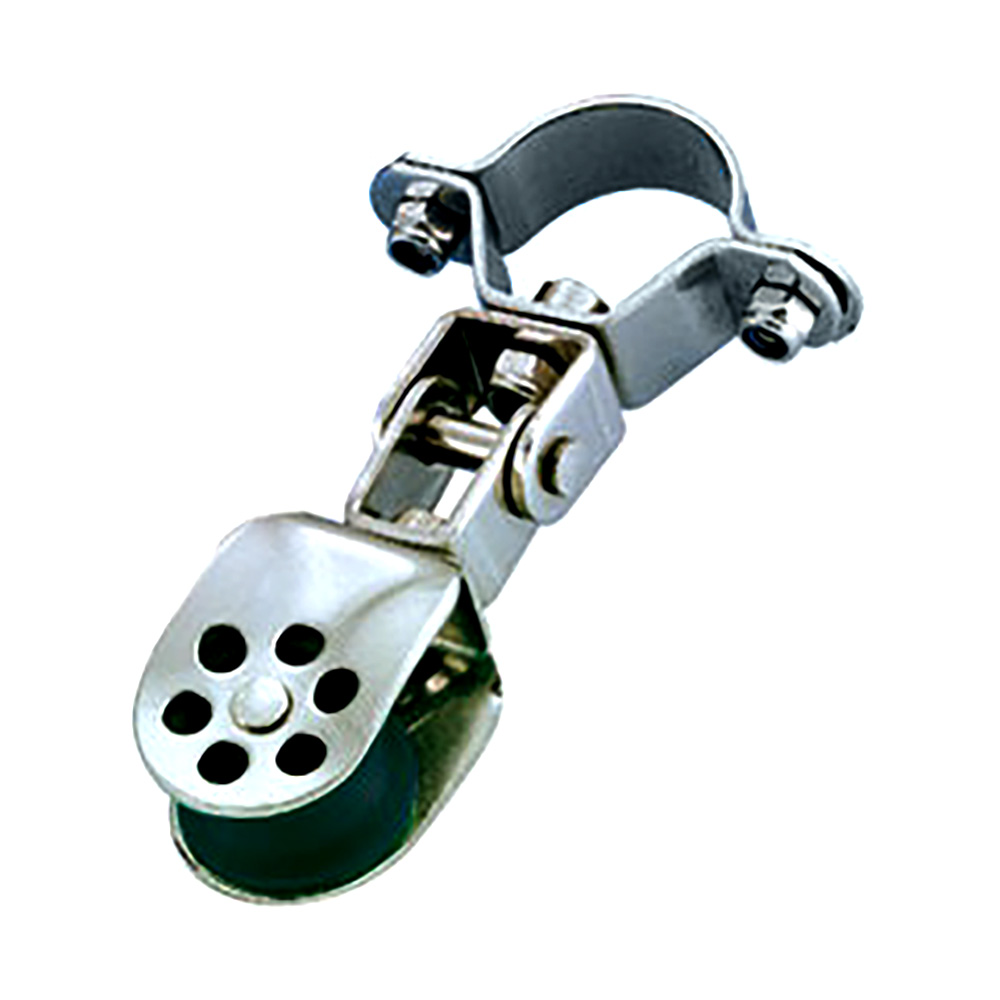

Stainless Steel Single Block – 25mm Sheave Diameter for 25mm Stanchion Pivoting
- A single block intended for use on a dinghy. The block is light, reliable, and has good performance.
Applications:
- For stanchion applications – furling system line
Specifications:
- Materials Composite sheave and 316L stainless steel grade cheeks
- Rope size: (inch) 5/16″-25/64″ / (mm) 8-10
- Length: (inch) 3 47/64″ / (mm) 95
- Width: (inch) 2 3/32″ / (mm) 53
- Thickness: (inch) 53/64″ / (mm) 21
- Sheave Diameter: (inch) 63/64″ / (mm) 25
- Working load: (lb) 610 / (mm) 280
- Breaking load: (lb) 880 / (mm) 400
- Weight: (lb) 0.154 / (g) 70
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4 × 3 × 1 in |
| Brand | Wichard Marine |
| Manufacturer Part Number | 30125W |
| Model | 30125W |
| UPC | 768536015560 |
| Type | Wichard Marine |
